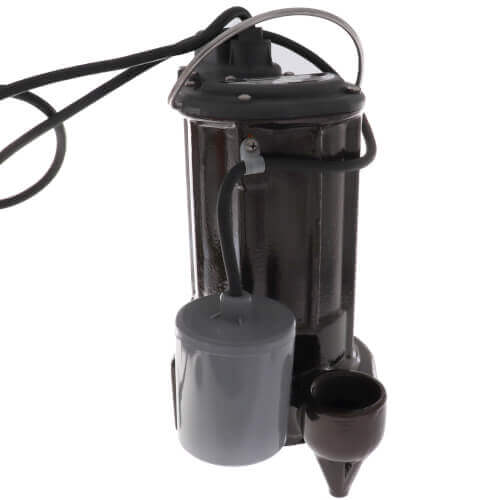

1/2 HP Automatic Effluent Pump w/ Wide-Angle Piggyback Float Switch - 208-230v, 10 ft Cord

The 283HV Model features a fully factory-equipped adjustable wide-angle float switch. Differential adjustments can be made easily by tethering the float to the discharge pipe or other mounting points. This wide-angle float switch is mercury-free, mechanically activated and mounted to the pump. This pump has two cords - one to the float switch and the other to the pump motor. The switch cord has a series (piggyback) plug enabling the pump (motor) cord to be plugged into the back of it. The purpose of this design of the piggy-back plug is to allow temporary manual operation of the pump without the removal of the pump if so desired.

Liberty Pumps 283HV are recommended for pumping of drainage, effluent and waste water, and other non-corrosive or non-explosive liquids. Use for De-watering, Sump and Effluent Applications.

Features:

Vortex style impeller permitting passage of solids up to 3/4"

416 stainless steel rotor shaft

Permanently lubricated upper and lower ball bearing

Carbon and ceramic mechanical face seal

Epoxy powder coat finish

All fasteners are corrosion-resistant stainless steel

1-1/2" Discharge

Stainless steel bottom screen which is easily removable

Maximum fluid temperature: 140°F
