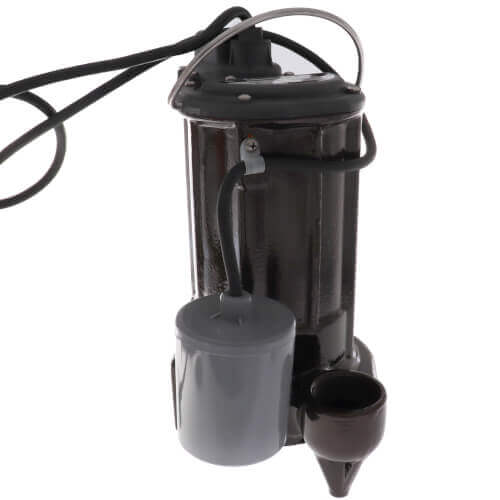

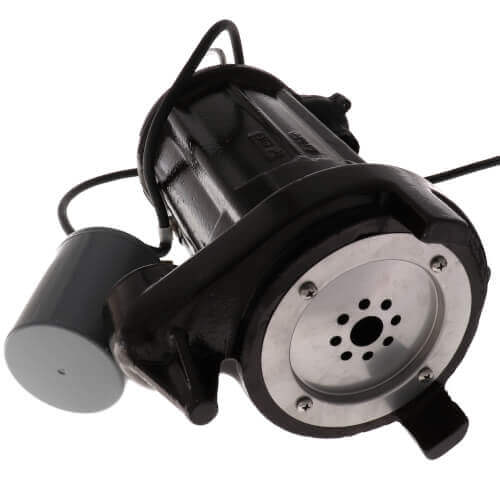

Liberty Pumps 283HV-3 is a cast iron Submersible Effluent/Sump Pump with High Voltage capability including a fully adjustable Wide-Angle Float with a Series Plug. It is recommended for pumping of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The convenient piggy-back plug allows for manual operation without the removal of the pump.

  • High Voltage 208/230v
  • Vortex style impeller permitting passage of solids up to 3/4"
  • Cast iron pump housing with protective epoxy coating for corrosion resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 1/2 HP shaded pole motor with thermal overload protection
  • Stainless steel screws, bolts and handle to protect against corrosion
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Upper and lower sintered sleeve bearings for extended motor life
  • Automatic operation with piggyback mechanical float switch with 'ON' level at 13" and 'OFF' level at 7" (pumping range is adjustable)
  • Hide Description
    Cord Length:







    Horse Power:


    Flow at 5 FT Head:

    62.5 GPM

    Shutoff Head (ft.):
