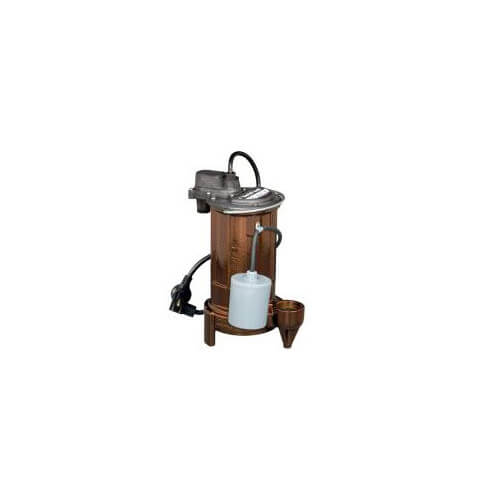

The Liberty 293 is an automatic, submersible effluent pump with an adjustable wide angle float that includes a series piggy-back plug for manual operation. The Liberty 293HV operates at 203/280V and is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids.
High Voltage 208/230v
Wide-Angle Float with piggy-back Series Plug design
Liberty's unique, one-piece "Uni-Body" casting
Permanently lubricated upper and lower bearings
Oil-filled, hermetically sealed motors with thermal overload protection
Stainless steel, removable bottom screen
416 Stainless steel rotor shaft
All fasteners are corrosion-resistant stainless steel
Semi-Open impeller permitting passage of solids up to 3/4"
Epoxy powder coat finish
Stainless steel bottom screen which is easily removable
Maximum fluid temperature 140 F
The Liberty 293 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.
