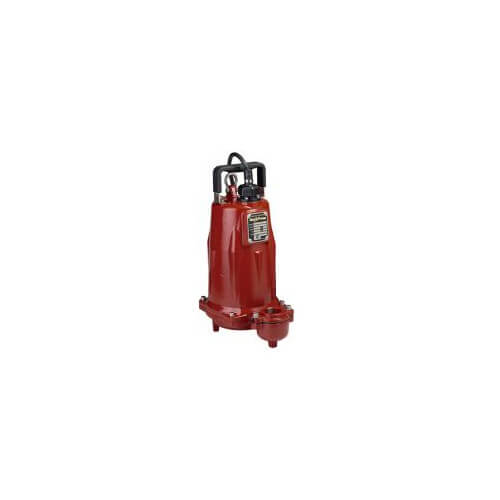

1 HP C.I. Manual Submersible Effluent Pump - 208-230v - 25 ft Cord - 3 Phase
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,366.13 each
Out of Stock
Get it Fri, Dec 15 - Wed, Dec 27
MANUALS (3)
Lift Gate
–
This product weighs 71 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
25'
230v, 208v
1 HP
102 GPM
Description
–
The Liberty Pump FL103M-2 is a manual submersible effluent sump pump with a 1 HP, 230v, 3 phase motor that's enclosed in heavy-cast iron construction. It's equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. The Liberty FL103M-2 is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications.
3-phase Liberty effluent sump pump models require a control panel for automatic operation. Check three phase sump/effluent pumps for proper rotation prior to installing pumps in basin. To change rotation, reverse any two of the three power leads to the pump. Code the wires for reconnection after installation.
Features:
3/4" Solids-handling
Heavy cast iron construction
2 vane semi-open cast iron impeller
416 stainless steel rotor shaft
Dual shaft seals - The FL100 Series features upper unitized carbon ceramic and lower Viton double lip
Single float, mercury free level control
Additional mounting clamp provided for optional switch mounting to pipe
Fully adjustable pumping range
2" FNPT threaded discharge with 1-1/2" FNPT flange provided
3-phase Liberty effluent sump pump models require a control panel for automatic operation. Check three phase sump/effluent pumps for proper rotation prior to installing pumps in basin. To change rotation, reverse any two of the three power leads to the pump. Code the wires for reconnection after installation.
Features:
Specs
–
| Cord Length: | 25' |
|---|---|
| Shutoff Head (ft.): | 90' |
| Voltage: | 230v 208v |
| Horse Power: | 1 |
| Type: | Manual |
| Flow at 5 FT Head: | 102 GPM |
| Flow at 10 FT Head: | 100 GPM |
