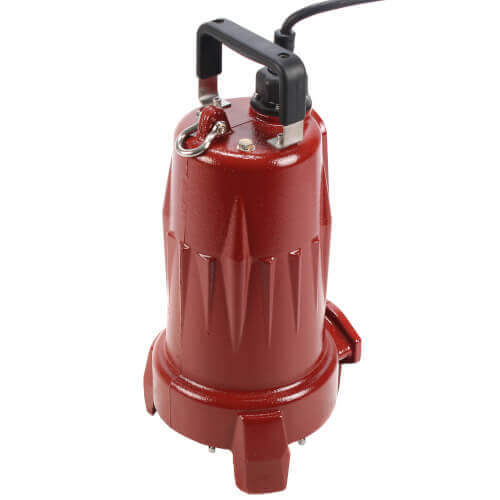

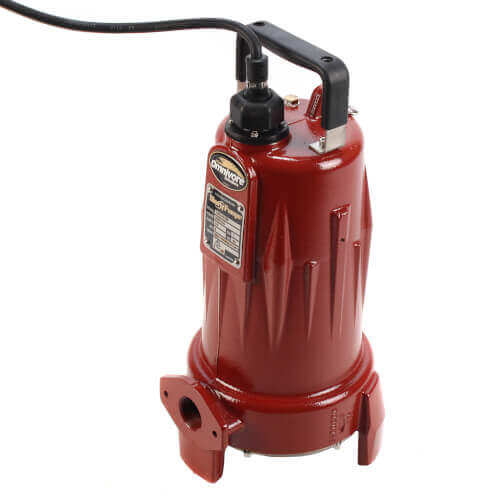

2 HP Manual Omnivore Grinder Pump - 440/460v - 25 ft Cord - 3 Phase

Liberty Pumps LSG204M is a 2 HP 440-460v Manual Submersible Grinder Pump (3 Phase) with 25ft quick-disconnect power cord. Liberty's LSG200-Series Omnivore grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. Superior cutting system of the Liberty Grinder Pumps LSG204M provides improved shredding performance over radial cutters. V-pattern provides up to 108 alternated cuts per revolution. Liberty LSG Series Grinder Pumps are designed for continuous underwater operation. The motor and pump form a close coupled, watertight unit. The induction motor is insulated against heat and moisture in accordance with Class B 265°F regulations. The Liberty LSG204M Grinder Pump features internal capacitors and does not require a separate control panel for operation.

Features:

2HP, heavy-duty motor - oil filled

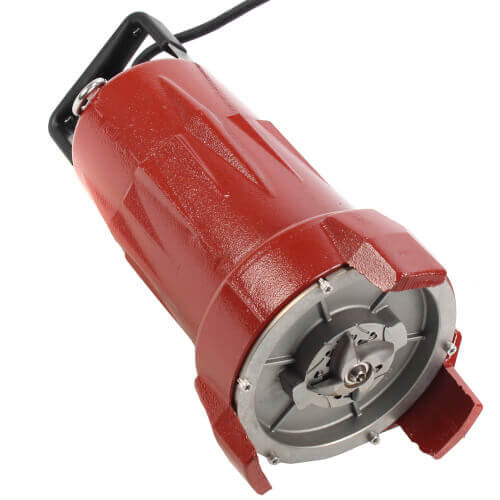

Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58

Internal capacitor

Upper and lower ball bearings

One-piece uni-body cast iron housing

300 Series SS Rotor Shaft

316 Stainless steel impeller

Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal)

Motor windings insulated to Class B (265°F)

New Patented V-Slice cutter technology

Horizontal 1-1/4" FNPT Discharge

Back vanes on impeller and spiraled bottom plate for superior solids clearing

All stainless steel fasteners

Clog-free volute design

Designed for maximum heat dissipation and cool motor operating temperatures

Solid state starting circuit - no mechanical relay coil

25' power cord with Quick-Disconnect
