Simplex Pump Control Panel 120/208/240V, 1 Phase, NEMA 4X, 15 - 20 amps

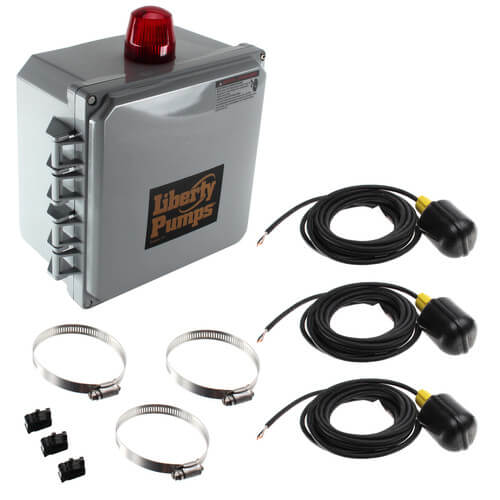

The Liberty Pump SXH24=3 is a 1 Phase, 15-20 Amp, a 120/208/240V Simplex Pump Control panel. This Liberty control panel was designed to provide a reliable means of controlling simplex pump systems in residential or commercial installations. The Liberty SXH24=3 is most commonly used in sump basins, effluent or sewage pump chambers and lift stations and is enclosed in a NEMA 4X. The NEMA 4X - ultraviolet stabilized thermoplastic enclosure is for outdoor or indoor use. The Liberty SXH24=3 consists of a control panel and 3-pilot-duty float switches. The floats control the pump stop, start and high level alarm functions.

Liberty Simplex Pump Control Panels boast magnetic motor contactor to control the pump by switching hot electrical lines and a sized to application circuit breaker to provide overload protection. The Liberty SXH24=3 utilizes horn and red light indicator, designed to be activated when an alarm condition occurs. HOA (hand-off-automatic) Switch offers either hand, off or automatic operations. In the hand mode, the pump will not turn on unless other safety features are employed. In the automatic mode, the pump will turn on from commands by the float switches. Available with many other options and must be ordered with the proper amp rating matching that of the pump.

Features:

• Across-the-line magnetic contactor
• Test/Auto switch
• Terminal block for easy wiring
• Circuit breaker
• Green pump run indicator light (internal)

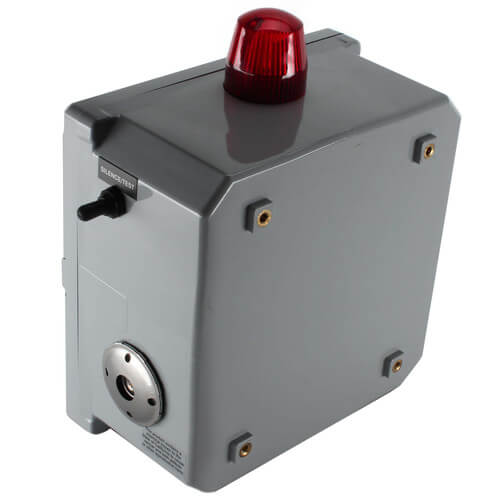

• Red alarm indicator light/audible alarm
• Auxilary Contacts
• Alarm silence and test switches
• Tri 120/208/240V operation on single phase
• UL/C-UL listed
