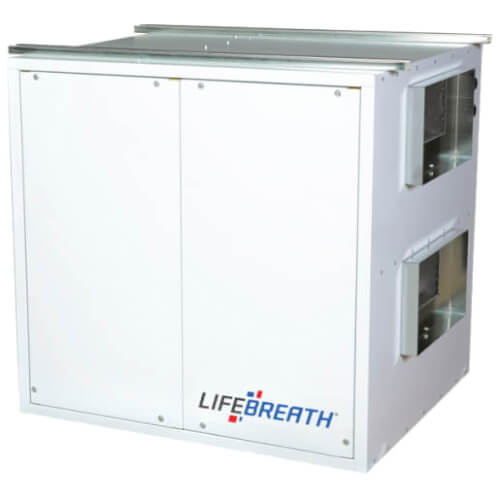

1200 FD Commercial Heat Recovery Ventilator, Fan Defrost, 1175 CFM
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 130 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
18 Amps
1175 CFM
15 Year on HRV/2 Year Replacement Parts Warranty
Description
–
Airflow up to 1200CFM; Compact and reliable unit for installation in tight locations. Access door located on front and back, blowers slide easily in/out for service and maintenance. Field reversible. Available with an option to add MERV 8 filter (99-65-184)
Features:
Features:
- Contains 3 AHRI 1060 Certified 68-222 HEX Cores
- Reversible access, E-box can be located on either side.
- Microprocessor circuit board with built in interlock contacts.
- Motors and Blowers - PSC 1/2 HP motors (3 Speed, double shafted) and 2 forward curved blower on each stream.
- Core - HEX CORE is a counter flow heat exchanger that ensures maximum heat transfer, low pressure loss, constructed of thermally conductive and durable aluminum. With our recirculation defrost strategy the sensible heat recovery efficiency (SRE) at -25C (defrosting) can be within a few percent of the 0C SRE (no defrost) delivering significant energy savings. Each core is tested to ensure very low leakage.
- Defrost - Fan
- Serviceability - Field reversible for maintenance and electrical access. Slide in and out core, filter, and blower assemblies. Service clearance 30 in.
- Case - 20GA Galv. Prepaint (G20)
- Insulation - 3/4" EPS Foil Face
- Filters - Washable
- Mounting - Saddle or curb mounted
Specs
–
| Voltage: | 120v |
|---|---|
| Amperage: | 18 |
| Air Flow Capacity (CFM): | 1175 |
| Speeds: | 3 |
| Motor: | Permanent Split Capacitor |
| Warranty: | 15 Year on HRV/2 Year Replacement Parts |
| Defrost Control: | Fan |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
10 Replacement Parts
Transformer, 19-138R
SKU: 19-138R
LifeBreathMetal Clip for Foam Filters (Pack of 20)
SKU: 81-007-20R
LifeBreathRelay 115
SKU: 18-100R
LifeBreath84" Thermistor Harness
SKU: 26-213R
LifeBreath5 uF Capacitor
SKU: 20-107R
LifeBreathAluminum HRV Core, Hexagonal
SKU: 68-222R
LifeBreathCircuit Board Kit
SKU: 62-245R
LifeBreathHRV Foam Filters for Hex Core (12 Packs of 2)
SKU: 65-161-12R
LifeBreathBlower Motor, 23-809R
SKU: 23-809R
LifeBreath
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
