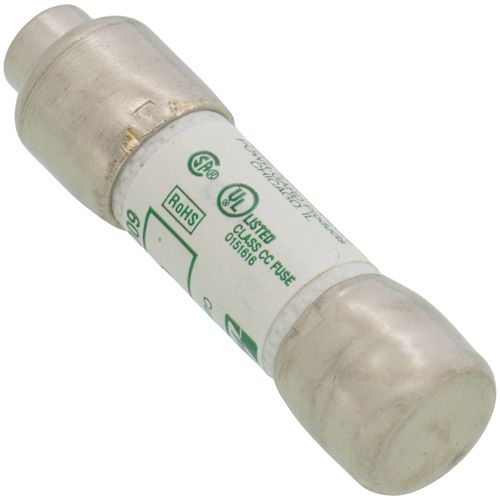

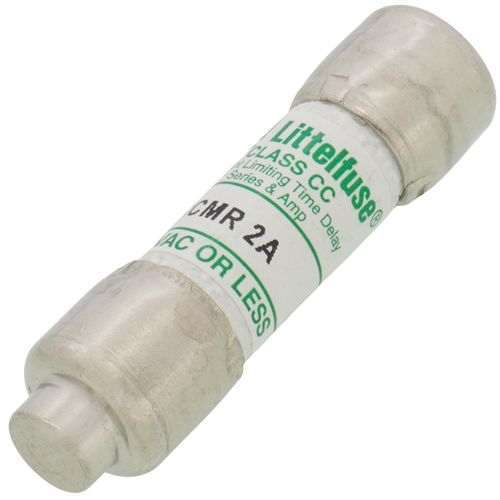

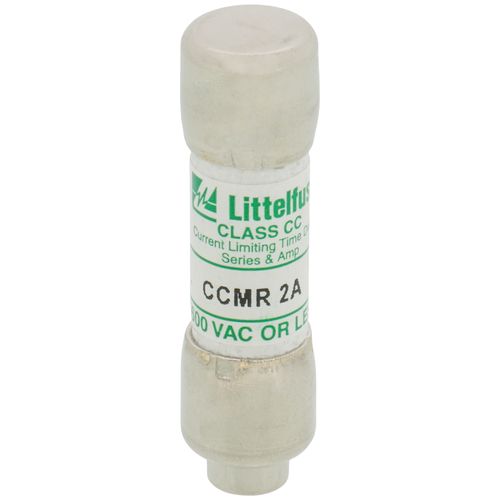

2 Amp Slo-Blo Time-Delay Class CC Current Limiting Fuse, 600V

CCMR Series dual element, time delay fuses are recommend for space-saving protection of motor circuits up to 40 HP

Only true dual-element time-delay CC fuses specifically engineered for motor branch circuit protection. Provide Type II protection (no damage) to both NEMA-rated and the more sensitive IEC (International Electromechanical Commission) type motor circuit components. Compared to other UL Listed fuses, Class CC dual element fuses are the most current limiting, rating for rating. Provide superior protection in a fraction of the space required by other fuse classes. For example, when 600V three-pole, 30 A Class R fuse blocks are replaced by Littelfuse Class CC fuse blocks, panel-mounting space is reduced approximately 70%.

Safety:

• 200,000 A.I.R. - Reliable interruption of all overcurrents up to 200,000 amperes.
• Extremely current limiting - Reduces damage caused by heating and magnetic effects of short-circuit currentsstops damaging short-circuit faster than any mechanical protective device.

Specifications:

• Ampere Rating (A): 2
• VAC (V): 600
• VDC (V): 250
• Interrupting Rating: 200000A@600VAC
• Opening: Slo-Blo/Time Lag (T)/Time Delay
• Package Size: Class CC
