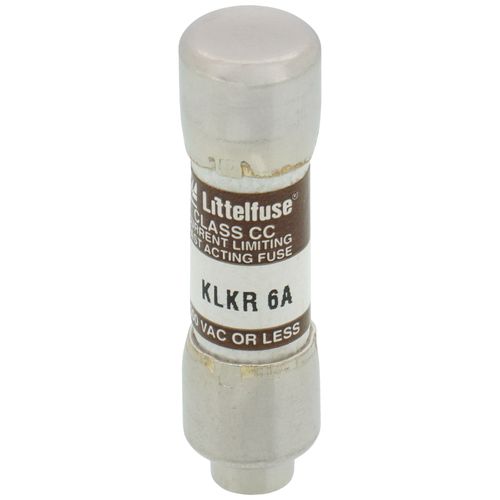

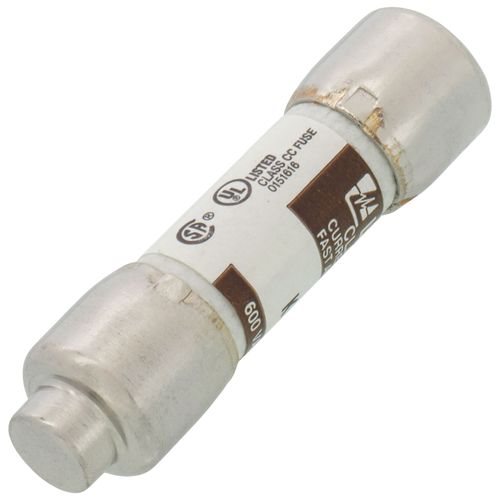

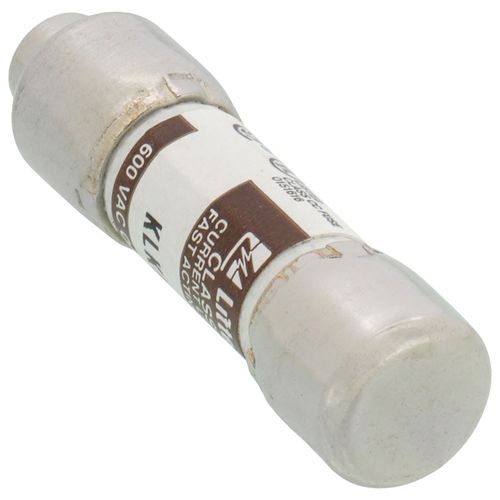

6 Amp Fast-Acting, Class CC Fuse (600V)

**Note:** Image may not be exact representation of item.

KLKR.300 - KLKR Series

KLKR series Class CC fuses are fast-acting fuses intended for general-purpose branch circuit protection. Their compact size, fast-acting overload response, and their highly current limiting design make them ideal for use in OEM equipment and control panels because Solid-state devices such as SCRs and other electronic equipment generally require fast-acting protection.

Features/Benefits

• Compared to other UL Listed fuses, Class CC fuses are the most current limiting, rating for rating.
• Provide superior protection in a fraction of the space required by other fuse classes. For example, when 600 V three-pole, 30 A Class R fuse blocks are replaced by Littelfuse Class
• CC fuse blocks, panel-mounting space is reduced approximately 70%.

Applications

• General purpose protection of equipment requiring fast overload protection - KLKR series, fast-acting fuses used for protection of equipment containing solid-state devices or other electronic components requiring fast response on overloads.

Safety:

• 200,000 A.I.R. - Reliable interruption of all overcurrents up to 200,000 amperes.
• Extremely current limiting - Reduces damage caused by heating and magnetic effects of short-circuit currentsstops damaging short-circuit faster than any mechanical protective device

Space Saving:

• Class CC fuses are the smallest 600V, 200,000 A.I.R. fuses approved for branch circuit protection.

Specifications:

• Ampere Rating (A): 6
• VAC (V): 600
• VDC (V): 300
• Interrupting Rating: 200000A@600VAC
• Opening: Fast-Acting (F)
• Package Size: Class CC
