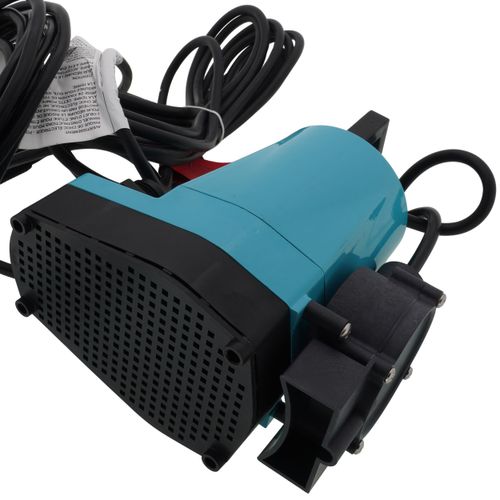

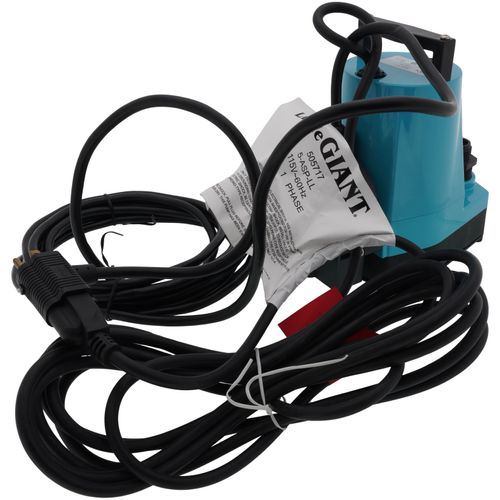

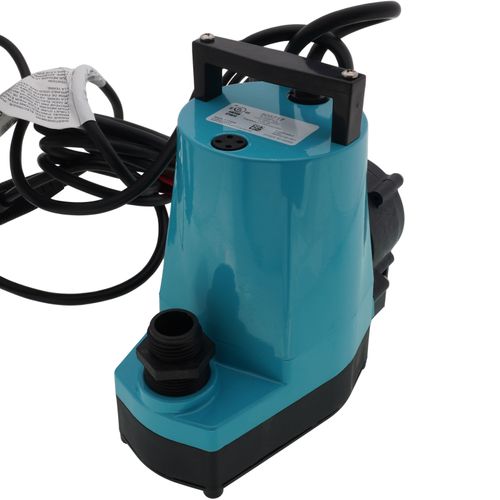

Main product image of 5-ASP-LL 1/6 HP, 1500 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 18 ft. Power Cord
Magnifying glass
Hover image to zoom

5-ASP-LL 1/6 HP, 1500 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 18 ft. Power Cord

SKU:
505717
Rating:
(1)
Q&A:
(0)
5-ASP-LL 1/6 HP, 1500 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 18 ft. Power Cord
Magnifying glass
Hover image to zoom
$199.99 each
In Stock
In Stock
Get 11 Wed, Jun 10
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Cord Length
18'
Product Highlight: Horse Power
1/6 HP
Product Highlight: Voltage
115V
Product Highlight: Amperage
5 Amps
Product Highlight: Wattage
380 Watts
Product Highlight: Flow at 5 FT Head
23.3 GPM

Description

Little Giant's 5-Series Submersible Utility Pump is one of the most compact utility pumps on the market. Ideal for light commercial and residential applications where water removal, transfer, or circulation is required.

Features:
  • Corrosion- and rust-resistant, epoxy-coated cast aluminum pump housing gives strength and high heat dissipation for both consumer and professional use
  • Rated for continuous duty which allows for a wide range of applications and uses
  • Compact design with manual version weighing in just under seven pounds makes this pump truly portable
  • 1/6 hp energy efficient and oil free PSC motor is environmentally friendly and delivers 1500 gph maximum capacity
  • FKM triple-lip seal
  • Upper and lower ball bearings for long life
  • 1" FNPT (25.4 mm) discharge (includes garden hose adapter for quick plug and play)
  • Removable inlet screen allows for easy cleaning without tools
  • In manual operation, pumps down to 1/8" (3.2 mm) with screen, and down to 1/16" (1.6 mm) without screen reduces overall water removal clean up time and effort
  • Multiple switch options for automatic operation gives application flexibility
  • Multiple power cord lengths available
  • Fully certified for a continuous duty liquid temperature rating of up to 86°F (30°C)

Specs

Cord Length:

18'

Shutoff Head (ft.):

26'

Type:

Automatic

Horse Power:

1/6

Voltage:

115V

Amperage:

5

Wattage:

380

Flow at 5 FT Head:

23.3 GPM

Flow at 10 FT Head:

19.9 GPM

Flow at 15 FT Head:

14.6 GPM

Max Pressure (PSI):

11.4

Discharge:

1" FNPT

Approvals:

UL/CSA

Weight (lbs):

8.7 lbs

Warranty:

1 Year
