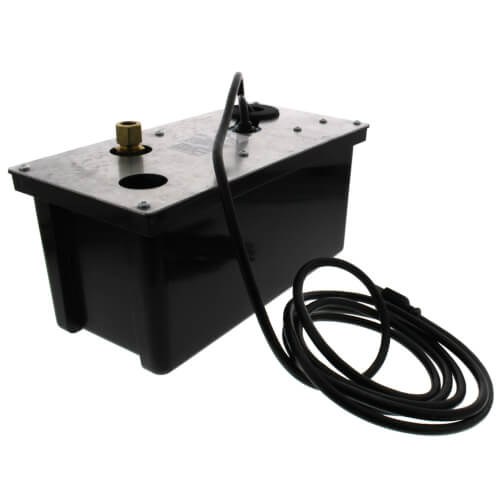

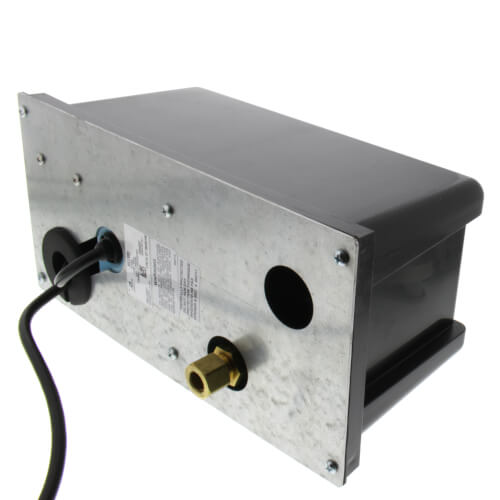

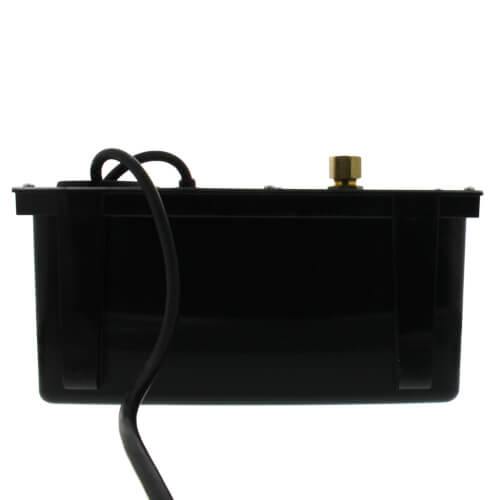

3-ABS, 1/2" Discharge Shallow Pan Condensate Removal Pump (115V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$250.80 each
In Stock
Get 21 Mon, Oct 2
More Available
Order by 5PM, receive Monday
MANUALS (3)
This item replaces: 551020
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
310 GPH
1/12 HP
Description
–
Overview:
Designed for in-pan placement, the 3-ABS shallow pan pump offers next generation technology for air conditioner condensate removal. The pump is totally submersible with a built-in, advanced non-mercury mechanical switch that automatically triggers operation when condensate in the pan or reservoir reaches a preset level. Then, automatic shutoff occurs when the condensate level drops. Low weight, compact size, high lift and quiet operation make the Little Giant line of ABS pumps perfect for in-pan condensate and other waste-water removal.
Specifications:
Features:
Designed for in-pan placement, the 3-ABS shallow pan pump offers next generation technology for air conditioner condensate removal. The pump is totally submersible with a built-in, advanced non-mercury mechanical switch that automatically triggers operation when condensate in the pan or reservoir reaches a preset level. Then, automatic shutoff occurs when the condensate level drops. Low weight, compact size, high lift and quiet operation make the Little Giant line of ABS pumps perfect for in-pan condensate and other waste-water removal.
Specifications:
- Horsepower - 1/12
- Flow - 310 GPH @ 1' of head
- Cord Length - 9'
- Shut-off - 26'
- Electrical - 115 V, 60 Hz, 3.5 Amps, 210 Watts
- On level: 4.5", Off level: 3.5"
- 26' Maximum lift
- Weight- 11.5 lbs
- Height - 6.5"
- Width - 6"
- Length - 12.03"
Features:
- Epoxy coated cast aluminum housing and motor cover
- Galvanized steel tank cover
- Includes 1 gallon ABS plastic tank
- Nylon volute
- Stainless steel shaft
- 1/2" MNPT discharge with brass check valve for 1/2" OD, rigid plastic or copper
- Viton shaft seal
- Advanced non-mercury mechanical switch
- Thermal overload protection
Specs
–
| Horse Power: | 1/12 |
|---|---|
| Flow at 1 FT Head: | 310 GPH |
| Voltage: | 115V |
| Shutoff Head (ft.): | 26' |
