Description

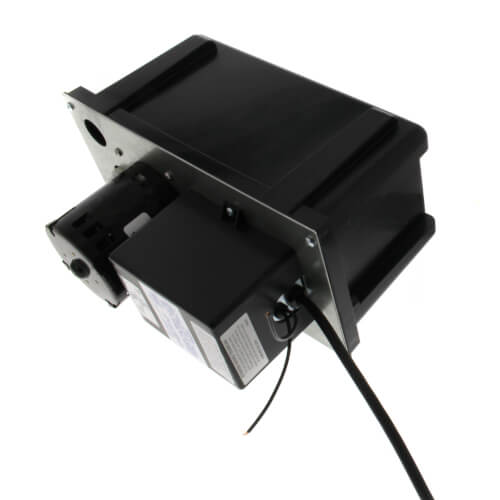

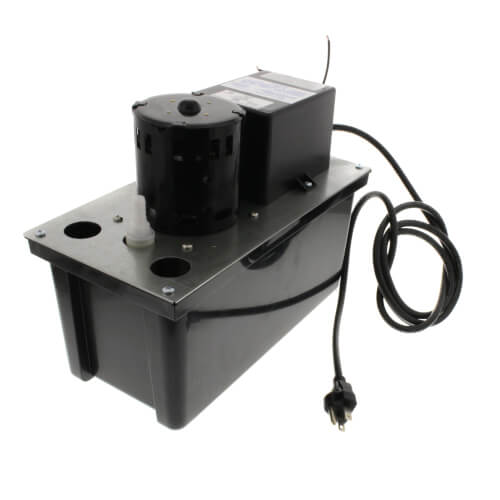

VCL-14 Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate

Specifications:
  • Motor - 1/50 HP
  • 1 gallon tank capacity
  • Intermittent Liquid Temp. up to - 120°F
  • Flow - 200 GPH @ 1' of Head
  • Discharge - 3/8" barbed
  • Housing - N/A
  • Cover - Galvanized steel
  • Cord Length - 6 ft
  • Weight - 6.8 lbs
  • Height - 9.46"
  • Width - 6"
  • Length - 12.03"
  • Volute - ABS
  • Impeller - Polypropylene
  • Shaft Seal - N/A
  • Screen - ABS
  • Electrical - 115 V, 60 Hz, 1.0 Amps, 78 Watts, thermally protected motor

Features:
  • Vertical type pump unit
  • Leakproof, rustproof, ABS tank
  • ABS switch cover and pump stand
  • Galvanized steel tank cover
  • Stainless steel motor shaft
  • 3/8" O.D. barbed discharge adapter
  • Safety switch included - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
  • 14' shut-off head
  • UL/CSA listed
  • Thermal overload protected
Read more
Manuals (2)
Specs
Voltage:
115v
Horse Power:
1/50
Flow at 1 FT Head:
200 GPH
Shutoff Head (ft.):
14
Includes:
Safety Switch
×
