Description

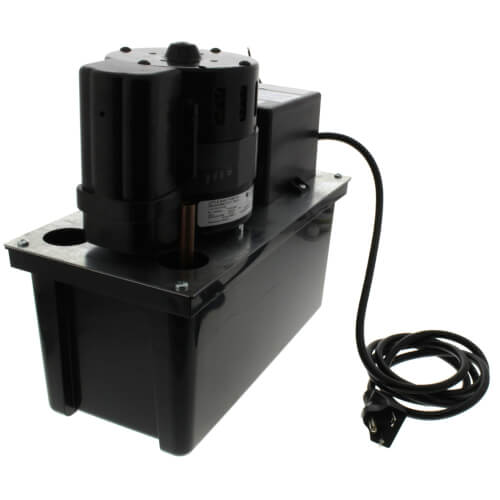

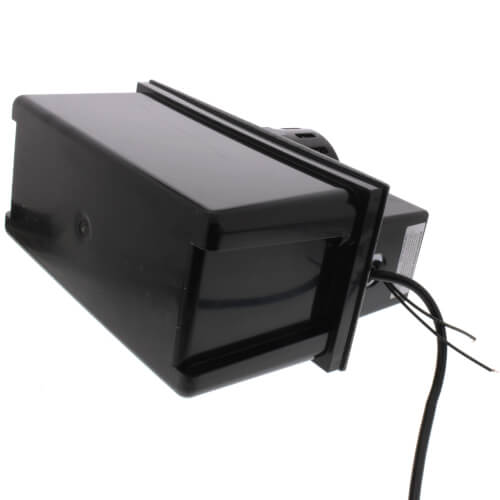

VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate

Product Features:
  • Vertical type pump unit
  • Leakproof, rustproof, ABS tank
  • ABS switch cover and pump stand
  • 3/8" O.D. copper tube discharge
  • Safety switch included - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
  • 45' shut-off head
  • UL/CSA listed
  • Thermal overload protected


Product Specifications:
  • Motor - 1/5 HP
  • 1 gallon tank capacity
  • Intermittent Liquid Temp. up to - 120°F
  • Flow - 450 GPH @ 1' of Head
  • Discharge - 3/8" O.D.
  • Housing - N/A
  • Cover - Galvanized steel
  • Motor Shaft - Stainless steel
  • Shaft Seal - N/A
  • Screen - ABS
  • Cord Length - 6 ft
  • Weight - 14 lbs
  • Height - 10.5"
  • Width - 6"
  • Length - 12"
  • Volute - ABS
  • Impeller - Polypropylene
  • Electrical - 230 V, 50/60 Hz, 1.0 Amps, 250 Watts, thermally protected motor
Read more
Manuals (2)
Specs
Voltage:
230v
Horse Power:
1/5
Flow at 1 FT Head:
450 GPH
Shutoff Head (ft.):
45
Includes:
Safety Switch
3/8" Tubing
×
