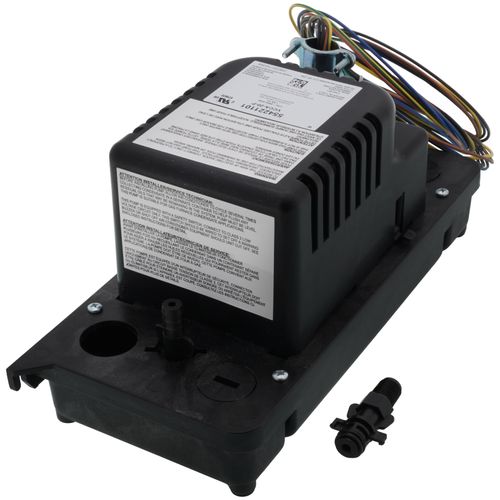

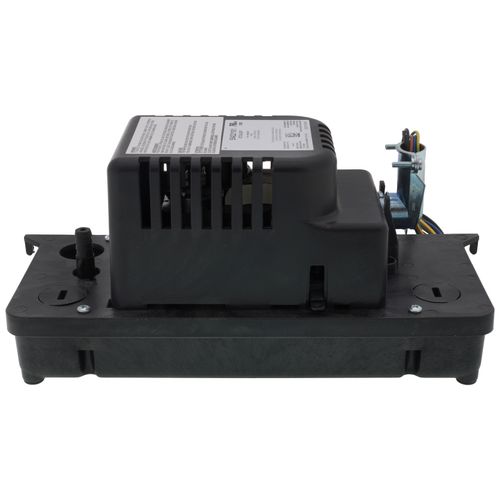

VCCA-20-P, 80 GPH Automatic Condensate Removal Pump (115V)

Designed for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible or practical. The VCCA Series’ low tank height allows these condensate pumps to be used where other condensate pumps will not fit.

Product Features

• The pump is labeled "suitable for use in air handling spaces"
• 1/30 hp motor
• Low profile for limited space applications
• 72" 3-conductor lead wires with adjustable conduit fitting for 1/2" diameter flexible metal conduit
• 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing
• Additional check valve included for 3/8" copper tubing
• Pump switch test lever (for manual test operation)
• Rubber feet on bottom of tank to isolate pump when placed on hard surface
• Three 1-1/8" diameter inlets
• Easy-to-knock-out plugs in two of the inlet openings
• Includes overflow detection switch with 72" leads
• Intermittent liquid temperature up to 140 °F
• Designed for hard-wire installation only
• Thermal overload protection
• Stainless steel motor shaft
