Lochinvar Ignition Module Replacement, 100208464

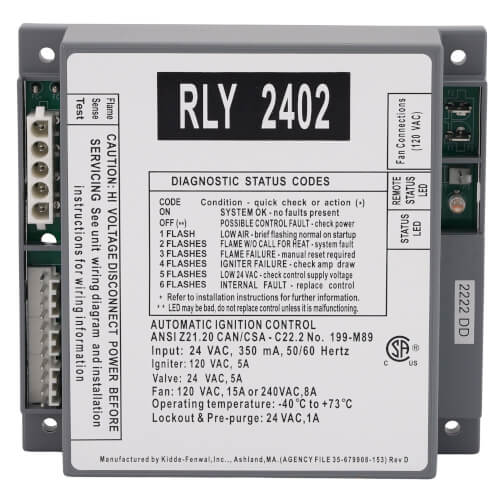

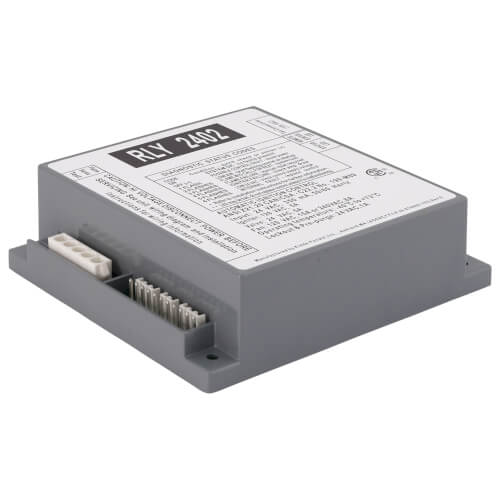

The Lochinvar 100208464 ignition module is a direct replacement control board designed for Copper Fin II Commercial Pool Heater systems. This OEM module manages the ignition sequence and flame safety operations, ensuring reliable startup and consistent burner performance in commercial pool heating applications.
Key Features & Benefits
Compatibility & Requirements
This ignition module is designed exclusively for Lochinvar Copper Fin II Commercial Pool Heater models. Installation requires a qualified technician familiar with gas-fired commercial water heating equipment, capable of following proper lockout/tagout procedures and verifying correct wiring connections. Verify the existing module's part number (RLY2402K, 100167711, or RLY2402) before ordering to ensure proper compatibility. Electrical connections must meet local codes and manufacturer specifications for safe operation.
Installation & Care
Turn off all power and gas supply to the heater before beginning work. Remove the access panel and photograph the existing module's wiring connections for reference. Disconnect wires one at a time, noting each terminal position. Remove the mounting screws securing the old module and lift it from the control panel. Mount the new module in the same position using the existing screw holes. Reconnect wires to their exact original terminals, ensuring tight, secure connections at each point. Verify all connections against your reference photo before restoring power. Restore gas and electrical service, then initiate a test cycle to confirm proper ignition sequence and flame detection. Monitor the first few heating cycles for normal operation.
What's Included
Warranty & Support
Warranty information is available through Lochinvar's standard parts warranty program.
Frequently Asked Questions
Q: Will this ignition module work with residential Lochinvar boilers?
A: No, this module is designed specifically for Lochinvar Copper Fin II Commercial Pool Heaters and is not compatible with residential boiler models.
Q: Can I install this ignition module myself if I have basic HVAC experience?
A: Installation requires a qualified technician trained in commercial gas-fired equipment, as improper wiring or installation can create safety hazards and void warranty coverage.
| Product Type: | Module |
|---|
