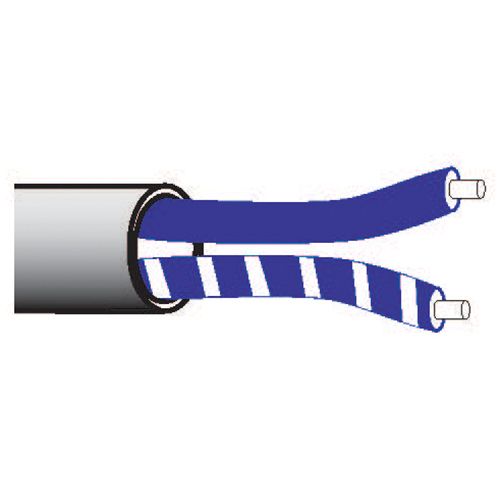

Ecosystem Two Conductor Non-Plenum Bus Cable (1000 ft.)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,341.67 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6 Amps
Gray
0.3" Diameter
PVC
ROHS, UL Type CL3R, UL 1666 Vertical Shaft, AWM Style 20811 Standards Met
Description
–
Features:
- Internal conductors match EcoSystem device terminal and lead color scheme.
- Each conductor sized for direct connection to EcoSystem ballast and module terminals.
- Three types of EcoSystem bus cable: Non-plenum bus cable (CL3R), for Class 2 applications -Non-plenum bus cable (TC), for Class 1 applications - Plenum bus cable (CL3P) for plenum Class 2 applications
- Non-plenum cable is rated to a maximum of 300V or 600V dependent upon application.
- Each offering is spooled to 1000 ft (305 m) and based upon industry standards of +/- 10% on all shipments.
- Non-plenum rated digital link sensor cable, CL2R for Class 2 applications. Internal conductors match EcoSystem device terminal and lead color scheme. Each conductor sized for direct connection to EcoSystem ballast and module terminals. Available in 1000 ft (304 m) +/- 10 percent spool. Dual rated to a maximum of 300 V or 600 V dependent upon application.
Specs
–
| Amperage: | 6 |
|---|---|
| Color: | Gray |
| Operating Voltage: | 300V RMS - CL3R Max 600V RMS - AWM Style 20811 Max |
| Continuous Draw: | 13A at 25°C Max |
| DC Resistance: | 4 Ohm/1000ft at 20°C |
| Temperature Rating: | -20° to 105°C |
| Diameter (Inches): | 0.3" |
| Bending Radius: | 1-3/4" Min |
| Material: | PVC |
| Standards Met: | ROHS UL Type CL3R UL 1666 Vertical Shaft AWM Style 20811 |
