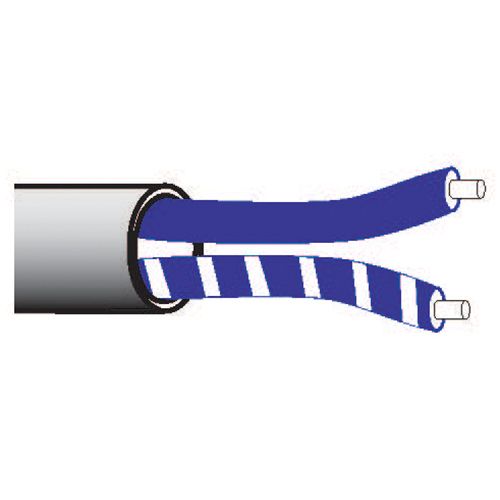

Ecosystem Two Conductor Plenum Bus Cable (1000 ft.)

Brand:
Lutron
SKU:
C-PCBL-216-CL-1
Rating:
(0)
Q&A:
(0)
Ecosystem Two Conductor Plenum Bus Cable (1000 ft.)
Magnifying glass
Hover image to zoom
$2,491.67 each
Out of Stock
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Amperage
6 Amps
Product Highlight: Diameter (Inches)
0.172" Diameter
Product Highlight: Color
Clear Jacket
Product Highlight: Material
FEP
Product Highlight: Standards Met
UL Type CL3R, ROHS, NFPA 262 Standards Met

Description

–


Features:
  • Internal conductors match EcoSystem device terminal and lead color scheme.
  • Each conductor sized for direct connection to EcoSystem ballast and module terminals.
  • Three types of EcoSystem bus cable: Non-plenum bus cable (CL3R), for Class 2 applications -Non-plenum bus cable (TC), for Class 1 applications - Plenum bus cable (CL3P) for plenum Class 2 applications
  • All plenum cable is rated to a maximum of 300V.
  • Each offering is spooled to 1000 ft (305 m) and based upon industry standards of +/- 10% on all shipments.
  • Plenum rated digital link cable, CL3R for Class 2 applications. Internal conductors match EcoSystem device terminal and lead color scheme. Each conductor sized for direct connection to EcoSystem ballast and module terminals. Available in 1000 ft (304 m) +/- 10 percent spool. Rated to a maximum of 300 V.

Specs

–
Amperage:

6

Operating Voltage:

300V RMS - CL3R Max

Continuous Draw:

13A at 25°C Max

DC Resistance:

4 Ohm/1000ft at 20°C

Temperature Rating:

-70° to 200°C

Diameter (Inches):

0.172"

Bending Radius:

1-3/4" Min

Color:

Clear Jacket

Material:

FEP

Standards Met:

UL Type CL3R

ROHS

NFPA 262
