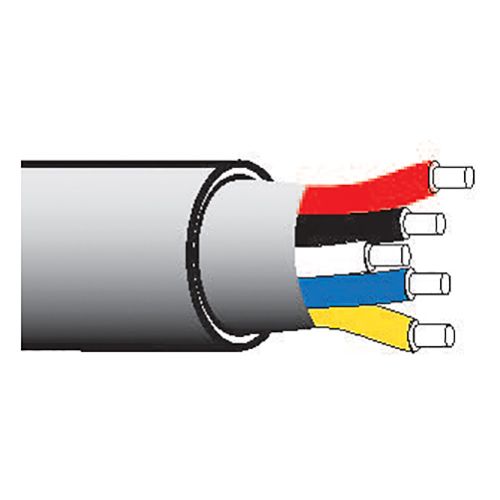

Ecosystem Five Conductor Plenum Sensor Cable (1000 ft.)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,619.45 each
Out of Stock
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.136" Diameter
Clear Jacket
FEP
ROHS, UL Type CL3R, NFPA 262 Standards Met
Description
–
Features:
- Internal conductors match EcoSystem device terminal and lead color scheme.
- Each conductor sized for direct connection to EcoSystem ballast and module terminals.
- Three types of EcoSystem bus cable: Non-plenum bus cable (CL3R), for Class 2 applications -Non-plenum bus cable (TC), for Class 1 applications - Plenum bus cable (CL3P) for plenum Class 2 applications
- Two types of EcoSystem Class 2 sensor cable: - Non-plenum sensor cable (CL3) - Plenum sensor cable (CL3P)
- All plenum cable is rated to a maximum of 300V.
- Each offering is spooled to 1000 ft (305 m) and based upon industry standards of +/- 10% on all shipments.
- Plenum rated sensor cable, CL2P for Class 2 applications. Internal conductors match EcoSystem device terminal and lead color scheme. Each conductor sized for direct connection to EcoSystem ballast and module terminals. Available in 1000 ft (304 m) +/- 10 percent spool. Rated to a maximum of 300 V.
Specs
–
| Operating Voltage: | 300V RMS - CL3R Max |
|---|---|
| Continuous Draw: | 4A at 25°C Max |
| DC Resistance: | 16 Ohm/1000ft at 20°C |
| Temperature Rating: | -70° to 200°C |
| Diameter (Inches): | 0.136" |
| Bending Radius: | 1-3/8" Min |
| Color: | Clear Jacket |
| Material: | FEP |
| Standards Met: | ROHS UL Type CL3R NFPA 262 |
