$24.06 each
In Stock
Get 6 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: RV12-1/8
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/8"
3" - 5"
Description
–

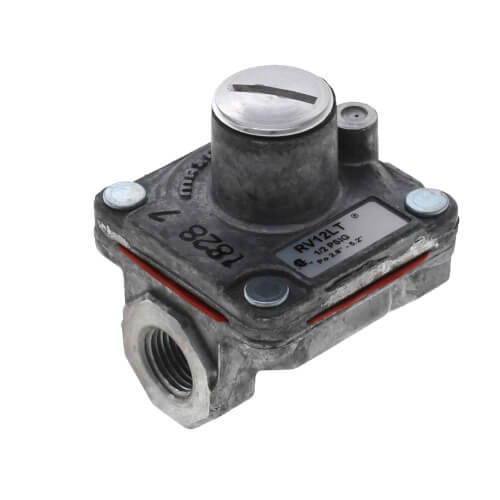

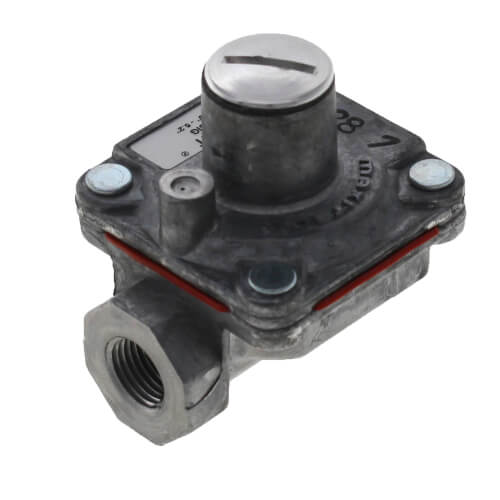

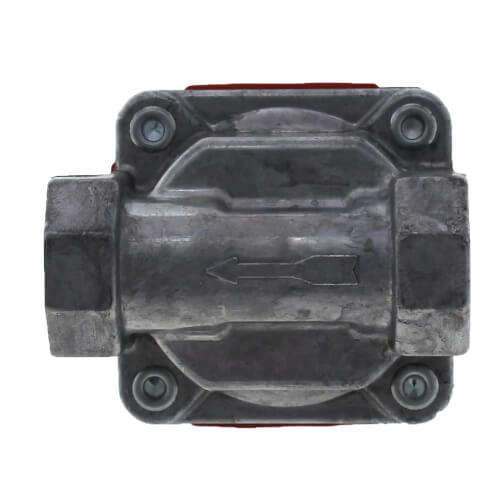

These rubber seat poppet type regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operating requirement.
Housings are of high strength aluminum die castings. All models, with the exception of D suffix models, have been tested for multipurpose mounting and may be installed in any plane or angle without restriction.
D suffix models are to be mounted horizontally. Other than normal upright position will result in slight difference of outlet pressure. They may be used with natural, manufactured, mixed, LP, or LP gas-air mixture.
Note: This product should be installed by a licensed gas fitter.
Housings are of high strength aluminum die castings. All models, with the exception of D suffix models, have been tested for multipurpose mounting and may be installed in any plane or angle without restriction.
D suffix models are to be mounted horizontally. Other than normal upright position will result in slight difference of outlet pressure. They may be used with natural, manufactured, mixed, LP, or LP gas-air mixture.
Note: This product should be installed by a licensed gas fitter.
Specs
–
| Size: | 1/8" |
|---|---|
| BTU Capacity (Burner): | 30000 |
| BTU Capacity (Burner and Pilot): | 25000 |
| BTU Capacity (Fixed Orifice): | 20000 |
| Spring Range: | 3" - 5" |
| Max Inlet Pressure: | 1/2 PSI |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
YES
There is a difference between the Maxitrol pilot line regulator for gas logs that I needed and the one that I selected. The regulator that I hoped to replace accepts a
"bubble" flare with a tube nut to compress it. The regulator that I had hoped to replace has a "seat" that is at the bottom, or past the threads. Without this seat in the regulator you would have to cut the pilot tubing and use a different type of compression fitting that incorporates a ferule.
Jay
Mint Hill, NC
6 months ago
Verified Buyer
Was this review helpful to you?
I would buy this part again if the fitting was different.
The part that I bought was a Maxitrol #RV12LT. It was going to be for the rebuild of a set of Desa gas logs. Desa has gone out of business. The part that I bought was identical to the part that I needed, a Maxitrol #RV12LTF, but critically different in that it didn't have the "Shoulder" at the bottom of the 1/8" connection treads.
This shoulder allows for the compression of the tubing to the regulator without the use of a Ferrule or olive in the connection.
Jay
Mint Hill, NC
6 months ago
Verified Buyer
