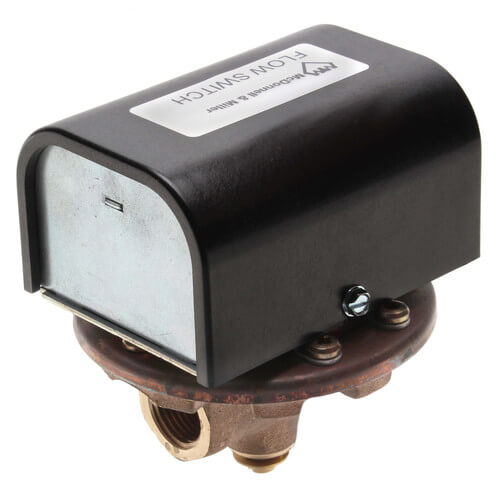

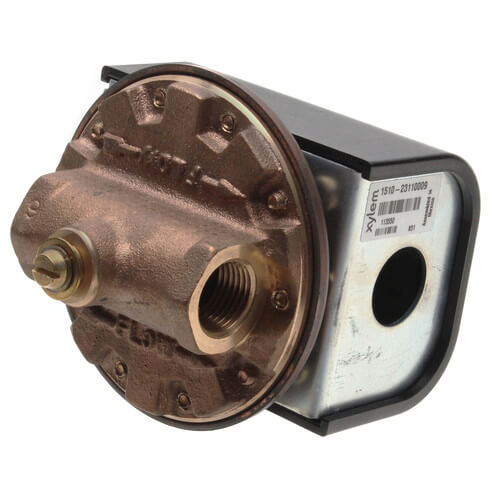

FS1-J, High Sensitivity Flow Switch, 1/2" NPT (w/ BSPT Threads)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
225°F Max Temp
100 psi
1/2"
240v, 120v
Description
–
For general purpose applications where high sensitivity
is required and moderate or low flow rates are
encountered such as air conditioning, heating and
hydronic systems, water, fuel oil, some viscous liquids
and oils in process work
- In-line configuration eliminates need for a pipe tee
- High flow capacity
- 1/2" (15mm) NPT

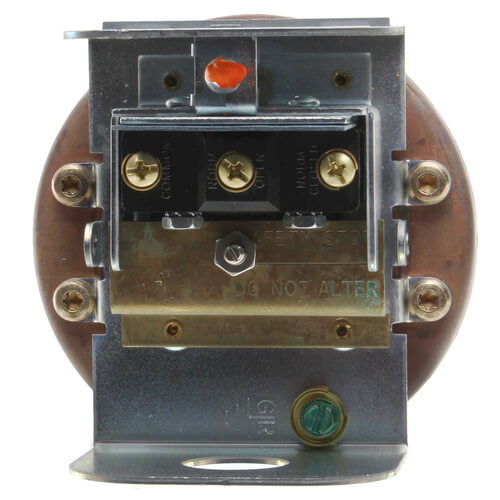

- Single pole, double throw snap switch
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
- BSPT threads
- Minimum temperature (fluid or ambient) 32°F (0°C)
- Maximum temperature 225°F (107°C)
- Maximum operating pressure 100 psi (7 kg/cm2)
Specs
–
| Max Temp (F): | 225°F |
|---|---|
| Max Pressure: | 100 psi |
| Type: | High Sensitivity |
| Application: | Liquid Flow |
| Size: | 1/2" |
| Switch: | SPDT |
| Voltage: | 240v 120v |
