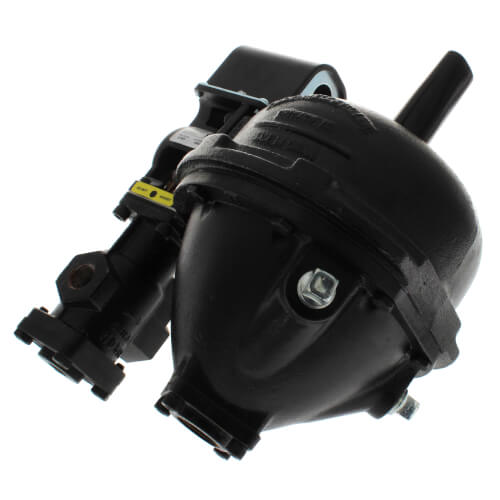

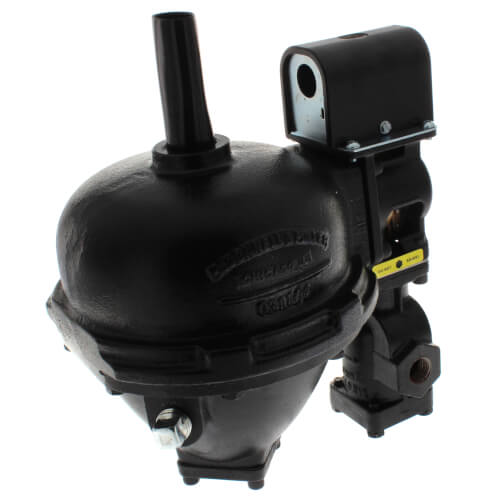

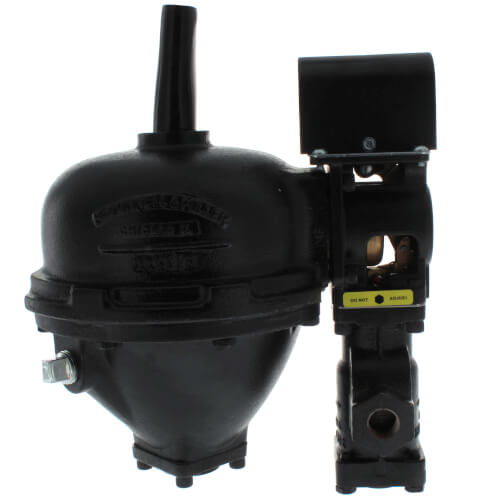

247-2, Mechanical Water Feeder w/ #2 Switch (LWCO Function)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,550.00 each
In Stock
Get 4 Thu, Jun 11
Order by today, receive Thursday
MANUALS (3)
This item replaces: 247-2
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
9.125"
7-5/16" Width
1/2"
Threaded Connection
Description
–
Series 247/247-2
Mechanical Water Feeders/Low Water Cut-OffsFor steam and hot water boilers with cold water feed Continuous maintenance of minimum safe water level, independent of electrical service Proportional feed action Quick-change replaceable cartridge valve and strainer Quiet, durable operation Isolated feed valve minimizes lime and scale build-up Optional features v No. 2 switch v Manual reset Model 247 can be field upgraded with a No. 2 switch to add low water cut-off function Maximum water supply pressure 150 psi (10.5 kg/cm2) Maximum inlet water temperature 120 degrees F (49 C) Maximum vessel pressure 30 psi (2.1 kg/cm2)
Mechanical Water Feeders/Low Water Cut-Offs
Specs
–
| Application: | Steam Boilers Hot Water Boilers |
|---|---|
| Type: | Float-Style |
| Max Pressure (PSI): | 150 |
| Max Vessel Pressure: | 30 psi |
| Reset Type: | Automatic |
| Max Inlet Water Temp (F): | 120°F |
| Height: | 9.125" |
| Width (Inches): | 7-5/16" |
| Size: | 1/2" |
| Connection Type: | Threaded |
| Electrical Ratings (AFL): | 10.2 A @ 120 VAC 5.1 A @ 240 VAC |
| Electrical Ratings (ALR): | 61.2 @ 120 Vac 30.6 @ 240 VAC |
| Pilot Duty Rating: | 125 VA |
| Switch: | #2 |
