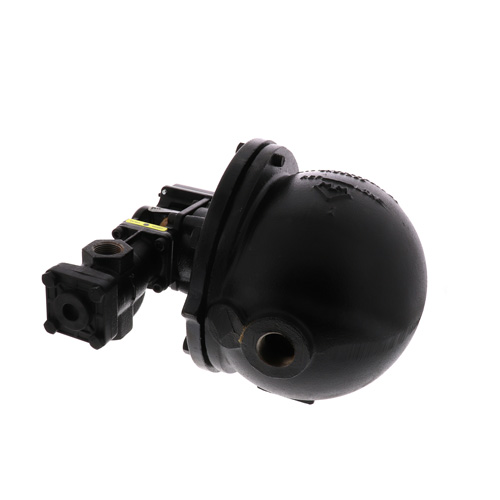

51-2, Mechanical Water Feeder w/ #2 Switch (LWCO Function)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,576.72 each
In Stock
Get 3 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 51-2
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
9" Width
10.375"
1"
Threaded Connection
Description
–
51-2 Mechanical Water Feeders/Low Water Cut-Offs
Product Features
Product Features
- For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m sq.) capacity with cold water feed
- Quick-change replaceable cartridge valve and strainer
- Comes with a No. 2 switch to add low water cut-off function
- Maximum water supply pressure 150 psi (10.5 lg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum vessel pressure 35 psi (2.5 kg/cm sq.)
- Manual reset
- Float block
- Proportional feed action
Specs
–
| Application: | Steam Boilers Hot Water Boilers |
|---|---|
| Type: | Float-Style |
| Max Pressure (PSI): | 150 |
| Max Vessel Pressure: | 35 psi |
| Reset Type: | Automatic |
| Max Inlet Water Temp (F): | 120°F |
| Width (Inches): | 9" |
| Height: | 10.375" |
| Electrical Ratings (AFL): | 10.2 A @ 120 VAC 5.1 A @ 240 VAC |
| Electrical Ratings (ALR): | 30.6 @ 240 VAC 61.2 @ 120 Vac |
| Pilot Duty Rating: | 125 VA |
| Size: | 1" |
| Connection Type: | Threaded |
| Switch: | #2 |
