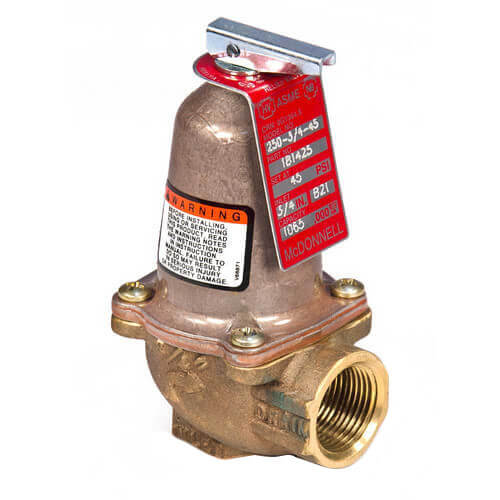

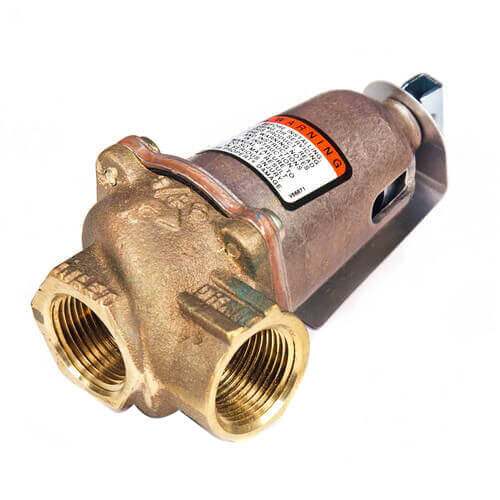

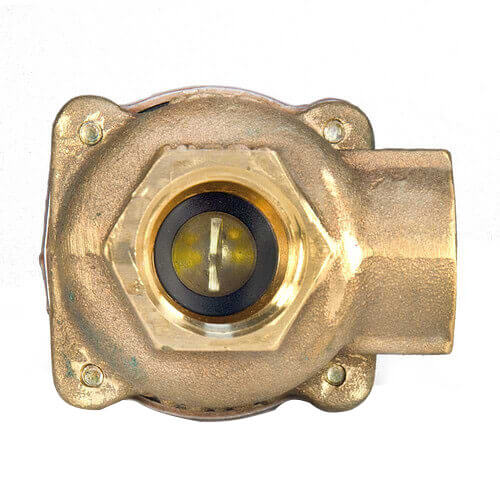

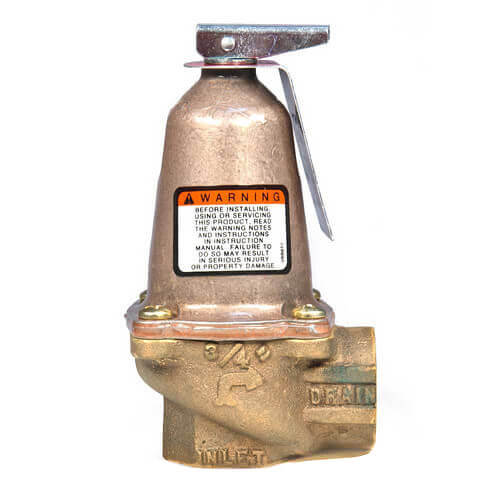

Main product image of 250-3/4-60, Relief Valve 3/4" NPT, 60 psi (4.2 kg/cm2)

Hover image to zoom

250-3/4-60, Relief Valve 3/4" NPT, 60 psi (4.2 kg/cm2)

Name: 250-3/4-60, Relief Valve 3/4" NPT, 60 psi (4.2 kg/cm2)
Brand: McDonnell & Miller
SKU: 181905
Price: 155.00 USD
Availability: OutOfStock

Brand:

McDonnell & Miller

SKU:

181905

Rating:

(0)

Q&A:

(0)

250-3/4-60, Relief Valve 3/4" NPT, 60 psi (4.2 kg/cm2)

Hover image to zoom

181905 has been discontinued

Discontinued December 7, 2024

This product was discontinued by the manufacturer.

MANUALS (1)

Product Overview

This item replaces: 250-3/4-60

Product Highlights

–

3/4"

60 psi

Bronze

250°F Max

Threaded Connection

Description

–

For tanks and hydronic heating systems
Specifications

Protects against over pressure
Minimizes hammering with flash steam
Low differential pressure - 3 psi (.21 kg/cm2) between opening and closing
Meets ASME Pressure Vessel and Boiler Code, Section IV
Sizes and material:
3/4" - 1" NPT - bronze body and seat
2" NPT - cast iron body, brass seat
EPDM rubber diaphragm and seat disc
Maximum temperature 250 Deg. F (121 Deg. C)
Maximum operating pressure range 30 - 125 psig (2.1 - 8.8 kg/cm2)

Specs

–

Pressure Set Point:	60 psi
ASME Rating (BTU/HR):	1252000
Capacity:	1252000 BTU/hr
Size:	3/4"
Material:	Bronze
Application:	Heating
Temperature Range (F):	250°F Max
Connection Type:	Threaded
ASME:	Yes
