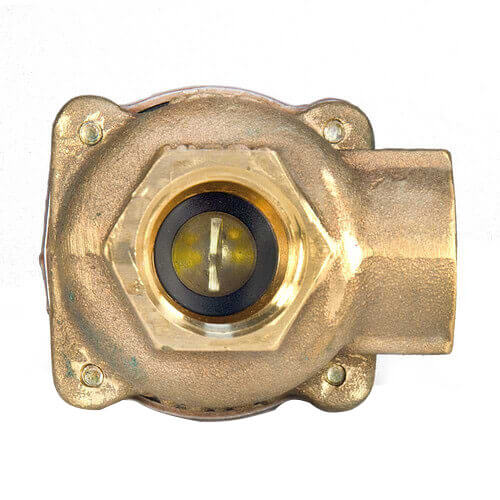

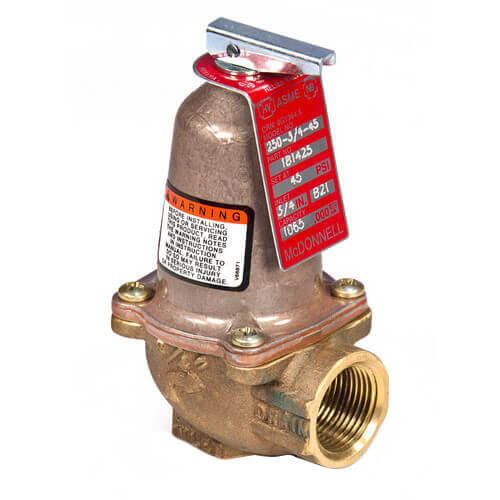

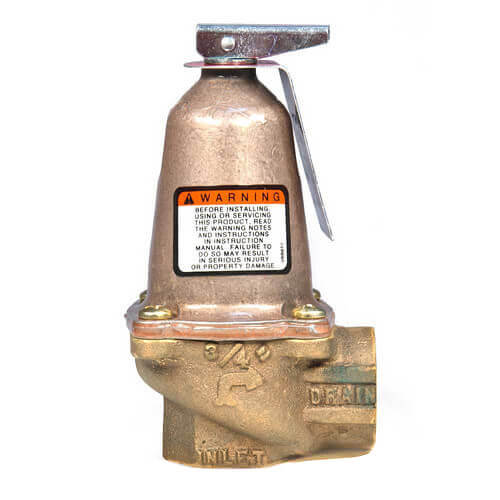

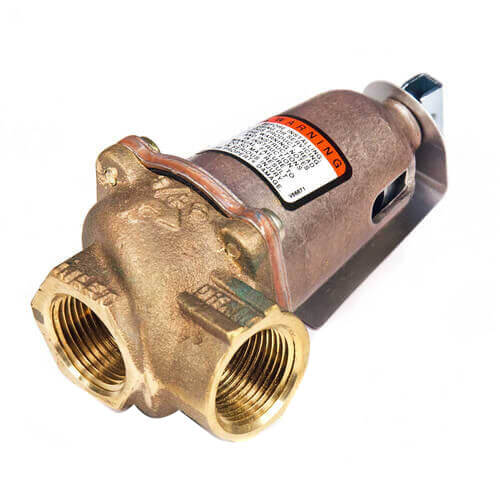

250-1-30, Relief Valve 1" NPT, 30 psi (2.1 kg/cm2)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$269.18 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (1)
This item replaces: 250-1-30
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
30 psi
Bronze
250°F Max
Threaded Connection
Description
–
For tanks and hydronic heating systems
Specifications
Specifications
- Protects against over pressure
- Minimizes hammering with flash steam
- Low differential pressure - 3 psi (.21 kg/cm2) between opening and closing
- Meets ASME Pressure Vessel and Boiler Code, Section IV
- Sizes and material:
3/4" - 1" NPT - bronze body and seat
2" NPT - cast iron body, brass seat - EPDM rubber diaphragm and seat disc
- Maximum temperature 250 Deg. F (121 Deg. C)
- Maximum operating pressure range 30 - 125 psig (2.1 - 8.8 kg/cm2)
Specs
–
| Pressure Set Point: | 30 psi |
|---|---|
| ASME Rating (BTU/HR): | 1170000 |
| Capacity: | 1170000 BTU/hr |
| Size: | 1" |
| Material: | Bronze |
| Application: | Heating |
| Temperature Range (F): | 250°F Max |
| Connection Type: | Threaded |
| ASME: | Yes |
