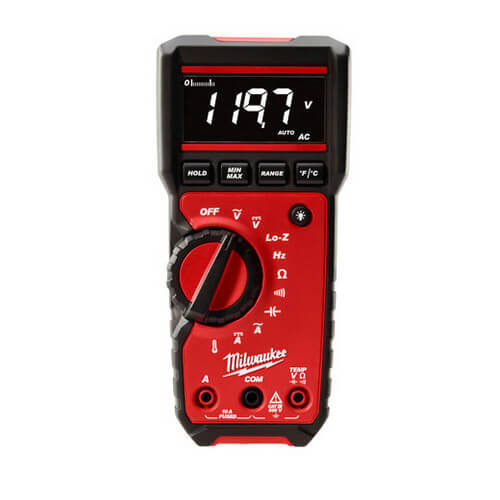

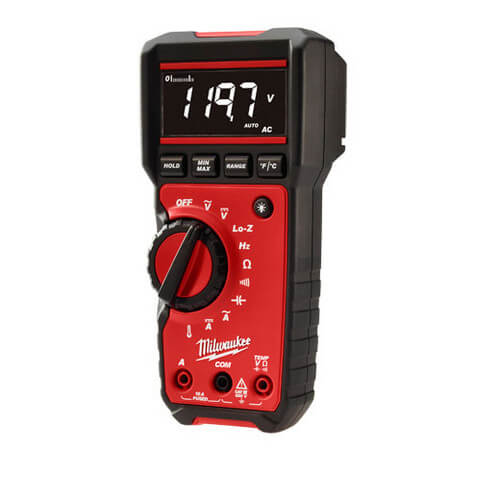

Digital Multimeter
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
2217-20 has been discontinued
Discontinued April 10, 2025
This product was discontinued by the manufacturer.
MANUALS (3)
Product Highlights
–
5 Year Warranty
6-1/2" Length
Description
–
Overview
The Milwaukee Digital Multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. In addition, the new model meets the safety specifications required by the electrical user. Covered by Milwaukee 5-Year Warranty.
Features
The Milwaukee Digital Multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. In addition, the new model meets the safety specifications required by the electrical user. Covered by Milwaukee 5-Year Warranty.
Features
- Wide Voltage range to 600 volts AC/DC
- Auto Range to millivolts
- True-RMS for accurate measurement in all applications
- Lo-Z measurement to eliminate ghost voltage
- Frequency measurements from 10Hz to 50kHz
- Contact temperature measurement from -40 to 752°F
- Current Measurement to 10 amps AC/DC
- High contrast, white on black display with backlight for easy reading
- Rugged over-molding increases durability and user grip
- 2217-20 Multimeter
- Test Leads
- Dual Banana Thermocouple
- (2) AA Batteries
- Manual
Specs
–
| Product Type: | Multimeter |
|---|---|
| Voltage Range: | 6mV to 600V AC/600mV to 600V DC |
| AC Amps: | 0.001-10.00A |
| mV DC: | Same as VDC (no switch function) |
| DC Amps: | 0.001-10.00A |
| Hz (Amps or Volts): | 9.999Hz-50.00kHZ |
| Ohms: | 600.0 Ohm-40.00M Ohm |
| Capacitance: | 0.1-1000uF |
| Temperature Range: | -40° to 752°F |
| Switch: | Dial |
| Display: | High contrast white on black |
| Features: | Backlight Rugged overmolding Dual banana thermocouple input Bargraph |
| Accessory Attachment: | Proprietary rail system; NCVD, Magnet |
| Non-Contact Voltage: | Accessory |
| TRMS: | Yes |
| Continuity: | Yes <30 Ohms |
| Auto Calibration: | No (Recommend sending in for calibration service once every year) |
| Safety Category Rating: | CAT III 600V |
| Hold: | Yes |
| Lo-Z: | Yes |
| Battery Type: | Alkaline (2 AA Included) |
| Length (Inches): | 6-1/2" |
| Warranty: | 5 Year |
