2290-20 has been discontinued
Discontinued July 28, 2012
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
12v
5 Year Warranty
Description
–
Overview

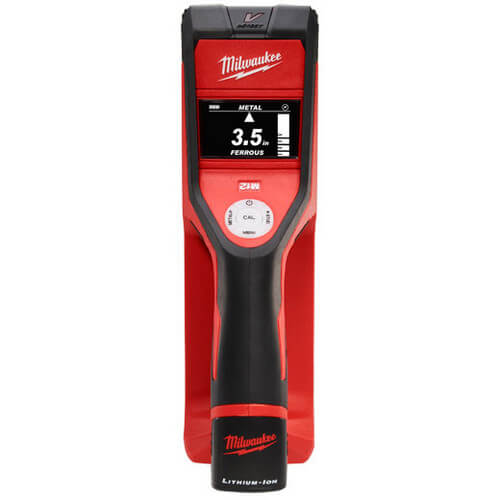

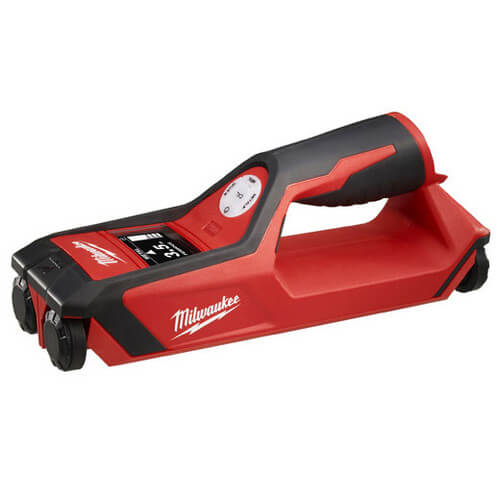

The SUB-SCANNER M12 Cordless Detection Tool is a heavy duty pistol grip detection tool for professional commercial and industrial applications. Powered by the Milwaukee M12 LITHIUM-ION battery, the 2290-20 can detect rebar up to 6" deep in concrete, as well as the location and depth of materials beneath gypsum, ceramic tile and marble. In addition, the M12 SUB-SCANNER Detection Tool has a four wheel design for durability and smooth, accurate measurement. The 2290-20 model is a bare tool sold without a battery or charger and is covered by the Milwaukee 5-Year Warranty.
Features
The SUB-SCANNER M12 Cordless Detection Tool is a heavy duty pistol grip detection tool for professional commercial and industrial applications. Powered by the Milwaukee M12 LITHIUM-ION battery, the 2290-20 can detect rebar up to 6" deep in concrete, as well as the location and depth of materials beneath gypsum, ceramic tile and marble. In addition, the M12 SUB-SCANNER Detection Tool has a four wheel design for durability and smooth, accurate measurement. The 2290-20 model is a bare tool sold without a battery or charger and is covered by the Milwaukee 5-Year Warranty.
Features
- Measures Depth and Location of Rebar Up To 6" Through Concrete
- Detects Location of Wood, PEX, PVC, and Metal
- Differentiates Between Steel (Ferrous) and Copper or Aluminum (Non-Ferrous) Metals
- Embedded AC voltage detection to identify the location of live wires
- Scans through gypsum, OSB, ceramic tile, marble, and concrete
- Intuitive user interface displays stud centers and edges
- High contrast white on black display and backlight for easy reading
- Rugged over-molding improves durability and user grip
- Auto Calibration for all surfaces
- 2290-20 M12 SUB-SCANNER Detection Tool-Bare Tool Only
- Manual
Specs
–
| Product Type: | Depth Detection Tool (Sub-scanners) |
|---|---|
| Voltage: | 12v |
| Wood Metal Stud (Depth): | 1-1/2" |
| Plastic (Depth): | 3" |
| Non-Ferrous Metal (Depth): | 6" |
| Ferrous Metal (Depth): | 6" |
| Display Metal Depth: | Yes |
| Stud Edge (Wood Metal): | Yes |
| Stud Center (Wood Metal): | Yes |
| Features: | Rugged overmolding Backlight |
| Auto Calibration: | Yes |
| Basic Accuracy: | 0.5" |
| Displays Stud Position: | Yes |
| Indication: | Visual |
| Display: | High Contact White on Black, Dot Matrix |
| Non-Contact Voltage: | Yes |
| Batteries Included: | 0 |
| Battery Type: | M12 Lithium-Ion Battery |
| Charge Time: | 30 Minutes |
| Position Accuracy-Wood: | 1/4" |
| Position Accuracy-Depth: | 1/2" |
| Position Accuracy-Non-Ferrous: | 1/2" |
| Position Accuracy-Ferrous: | 1/2" |
| Switch: | On/Off Button |
| Warranty: | 5 Year |
