$5,151.00 each
Backorder
MANUALS (1)
Lift Gate
–
This product weighs 95.8 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1.5 HP
23 CFM
Description
–
Product Overview

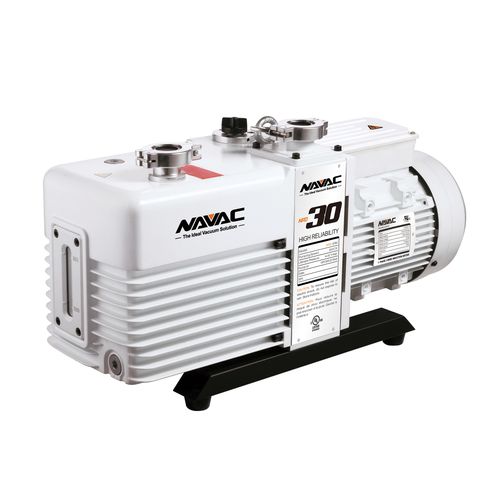

With ultimate vacuum down to 3 microns and industrial-grade design, NAVAC NRD24M/NRD30M is perfect for heavy-duty jobs, with its high speed and maximum durability. Featuring cUL approval, motor direct drive dual-stage, two-shift adjustable gas ballast valve, anti-suck back design and a forced oil circulation system, it is your ideal vacuum pump for industrial applications, including ammonia systems.
Features
- Power Supply: 115V/60Hz
- Flow Rate: 23 CFM
- Ultimate Vacuum: 3 micron
- Ultimate Vacuum GB: 6 micron
- Water Vapor Capacity: 1.1 lbs/h
- Motor Power: 1.5 hp
- Oil Capacity: 2.1 quart
- Oil Type: NPO68
- Inlet and Exhaust Flange: Inlet KF25, Exhaust KF25
- Noise Level: 58 dB
- Ambient Temperature: 40-104 F
- Net Weight: 77 lbs
- Dimensions: 20.5 7.4 10.7 inch
- Accessories: NPO68 Pump Oil, KF25 Clamps
- Warranty: 1 year
Specs
–
| Product Type: | Vacuum Pump |
|---|---|
| Horse Power: | 1.5 |
| Air Flow Capacity (CFM): | 23 |
| Weight (lbs): | 77 |
