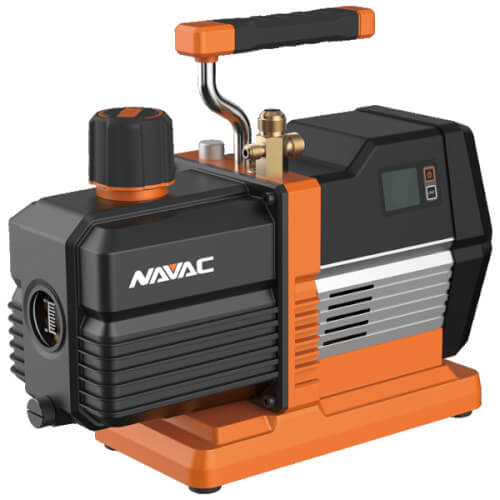

Dual Stage Smart Vacuum Pump w/ Digital Control, Master Series (6 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
The NRP6DI is a smart dual-stage vacuum pump from Navac's Master Series, designed for advanced evacuation performance with digital precision. Delivering 6 CFM airflow, it features a digital control panel with micron readout, customizable settings, and smart functions to optimize system evacuation for modern HVAC/R applications.
What's in the Box- 1 x NRP6DI dual-stage smart vacuum pump
- Digital control interface with micron gauge
- Power cord and operating manual
- Dual-stage design achieves deep vacuum levels with professional reliability
- 6 CFM capacity supports residential and light commercial systems
- Digital interface provides real-time micron display and programmable settings
- Smart auto-shutoff function helps protect systems and reduce technician oversight
- Part of Navac's Master Series for high-performance evacuation tools
- Smart digital controls streamline evacuation with precise monitoring
- Provides deeper, faster vacuum with dual-stage technology
- Improves efficiency and reduces risk of system contamination
- Navac NVO1Q Quantum Premium Vacuum Pump Oil (1 Qt)
- Navac NH34AB 3/4" Big Boy Evacuation Hose, 3 ft
- Navac NRS2A Smart Refrigerant Scale (220 lb)
Dual Stage Smart Vacuum Pump w/ Digital Control, Master Series (6 CFM)
The era of smart refrigerant evacuation begins here with the combination of inverter, vacuum measurement and smart control in one unit. The light-weight, inverter-driven, twin-cylinder vacuum pump delivers high-speed evacuation along with high ultimate vacuum. Vacuum measurement technology precisely measures the system pressure. A digital display provides a comprehensive view of the system's internal vacuum condition. Smart control assures the system's vacuum by automatically extending the evacuation time after the system reaches the preset vacuum level. A built-in solenoid valve prevents oil back flow and seals the system to preserve the vacuum during power outage or accidental disconnect. Upon completion of operation, the unit will beep to remind the technician that evacuation is complete, so they can move on to the next job.
Specs
| Product Type: | Vacuum Pump |
|---|---|
| Air Flow Capacity (CFM): | 6 |
| Voltage: | 115V |
| Amperage: | 5.5 |
| Hertz: | 60 |
| Ultimate Vacuum: | 15 microns |
| Oil Capacity (fl. oz.): | 17.6 |
| Stages: | 2 |
| Inlet Size: | 1/4" 3/8" 1/2" |
| Inlet Type: | Flare |
| Horse Power: | 3/4 |
| Warranty: | 2 Year |
