Neutralizing Condensate Pump (6,000,000 BTU/hr)

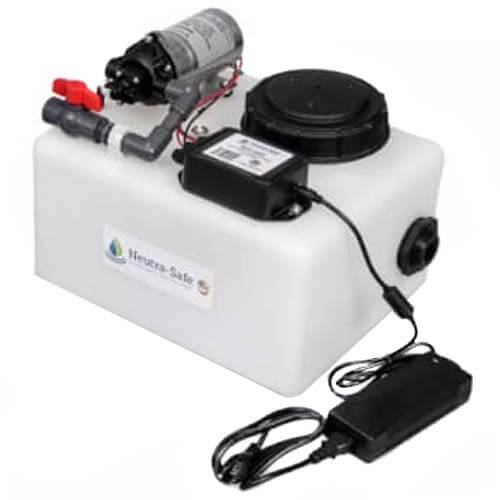

The Neutra-Safe® NSP-600 neutralizing condensate pump has a guideline capacity of 6,000,000 BTU/h of appliance input. This unit consists of a 6-gallon roto-molded tank with a large 5” diameter screw on cap for easy installation of the Neutra-pH media and visual inspection. The pump is a SHURFLO® 12VDC diaphragm pump. This pump is capable of conservatively pumping 60 gph at 100 feet of head and has an internal check valve. The NSP-600 has a suction strainer to keep foreign material from damaging the pump. The float switch has a built-in shield to keep media away from the float. The heavy-duty UL listed power supply easily plugs into the electrical enclosure. Unit is equipped with a 1” NPT female inlet and a ½” NPT female outlet.

Features:

• Little Giant Pump VCMA20S
• Up to 6,000,000 BTU’s of input
• Patent pending serpentine design of neutralization chamber allows for longer exposure of acidic condensate with Neutra-pH media for enhanced performance
• Neutra-pH media contained in a fabric sack for easy maintenance and recharge
• Separate inlets for A/C condensate and condensing appliance condensate
• Clear snap off lid on neutralizing chamber provides easy visual inspection of the media. No tool required to recharge!
