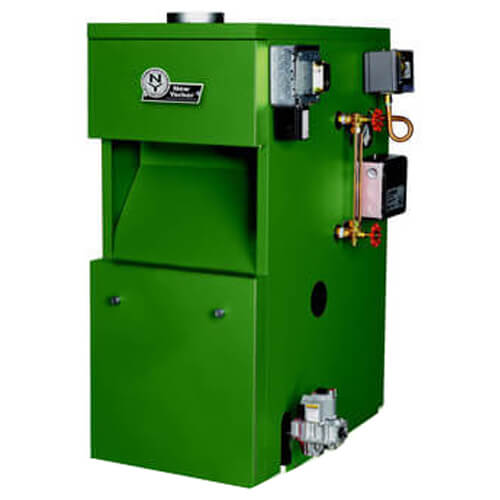

CGS40C CGS-C Series 63,000 BTU Output Electronic Ignition Cast Iron Gas-Fired Steam Boiler w/ LWCO (NG)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 420 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
63000 Max BTUs
Natural Gas
10 Year Limited Warranty
Steam
40.4375" Height
103000 BTUs
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
** Note: Product Title reflects this boiler's Net AHRI Rating, Steam (MBH)
Product Specifications
Standard Equipment
** Note: Product Title reflects this boiler's Net AHRI Rating, Steam (MBH)
Product Specifications
- Up to 82.2% AFUE
- 103 MBH Input
- 84 MBH DOE Heating Capacity
- 63 MBH Net AHRI Rating, Steam
- Built-in draft diverter - Fits in low spaces
- Electronic ignition
- Stainless steel burners
- Cast iron heat exchanger
- Meets the ASME Boiler and Pressure Vessel Code
- Metal section connectors - Resist chemicals, increases the life of the boiler
- Fully assembled
- 10-year limited warranty
- User-friendly
- Energy-saving "thermal purge" feature circulates residual warm water in heating system prior to firing boiler
- This item comes with 24V LWCO add-on kit
- Combo high limit circulator relay
- Propane
- Cast iron heat exchanger: Meets the ASME Boiler and Pressure Vessel Code
- Metal section connectors: Resist chemicals, increases the life of the boiler
- Fully assembled
- 10-year limited warranty
Standard Equipment
- Fully packaged
- Insulated jacket
- Pressure limit
- 15 PSI safety valve
- Honeywell gas valve
- Probe-type LWCO
- Steam pressure gauge
- Built-in draft diverter
- Flame roll out switch
- Blocked vent switch
- Vent damper
- Drain valve
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Efficiency: | 82% |
| System Type: | Steam |
| Width: | 16" |
| Height (Inches): | 40.4375" |
| Features: | Chimney Vent Combo DHW Electronic Ignition |
| Vent Size: | 5" |
| Gas Connection: | 2" |
| BTU Input: | 103000 |
| BTU Output: | 63000 |
| AHRI Rating: | 63000 |
| DOE Rating: | 84000 |
| Number of Sections: | 4 |
| Warranty: | 10 Year Limited |
