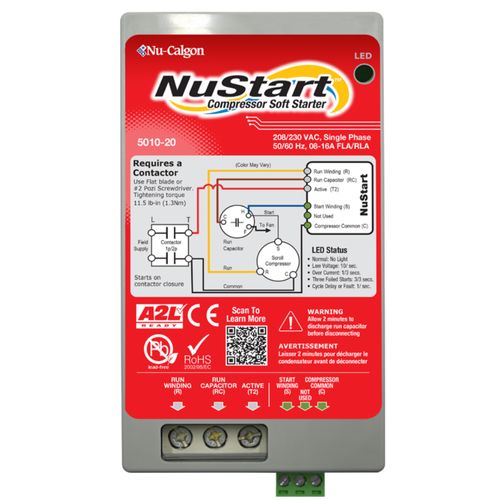

208/230V 16-32 RLA 1 Phase NuStart Compressor Soft Starter

NuStart is both a soft starter and protection device for the scroll compressor in the HVAC/R system. The product uses a current-based motor control to optimize motor start-up for the scroll compressor, in doing so, significant reductions in-rush amperage and motor torque with compressor start-up. End-user benefits include: reduction in start-up noise and vibration, eliminates light flicker and nuisance circuit breaker trips, reduction in contactor arcing, and less mechanical stress on the compressor and connected refrigerant piping. Furthermore, lowering the in-rush current of the compressor allows for a more efficient start-up with off-grid solutions such as solar/battery systems or backup power sources, allowing the use of a smaller generator. NuStart provides another level of protection for the scroll compressor in the HVAC/R system. NuStart offers exclusive reverse motor (scroll) protection and under voltage protection to prevent motor stalling at start-up or during operation in low voltage (brownout) events. The single-phase series provides overcurrent protection to the compressor. NuStart provides added protection to the compressor - it is NOT a replacement for any primary circuit breaker or an overload protection device.

Features:

• Most Trusted and Compact Soft Starter in the HVAC/R Market
• Compatible with all Modern Scroll Technologies
• Provides Efficient Start-Up on Back-Up/Off-Grid Power Sources
• Reduces In-Rush Current and Start-Up Torque
• Reduces Compressor/Refrigerant Piping Stress at Start-Up
• Prevents Light Flickering at Start-Up
• Lowers Start-Up Noise and Vibration
• Provides Added Compressor Protection:
• Exclusive Reverse Scroll Protection
• Low Voltage Protection
• Hard Start Lock-Out Feature
• Overcurrent Protection (Single Phase Series)
