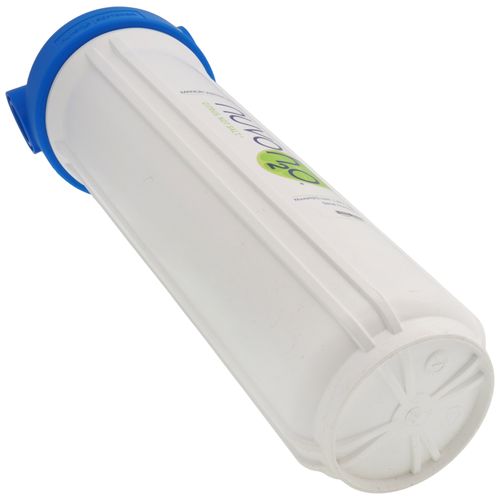

Manor Water Softener System
The Manor Water Softener System is a salt-free water conditioning unit designed for homes larger than 1,500 square feet. This compact system uses chelation technology to prevent hard water scale without electricity or wastewater discharge, lowering the pH level of water through an FDA-approved proprietary formulation that binds calcium and magnesium minerals to keep them soluble and unable to cause hard water problems. The resulting water is soft and healthy for all household uses, including drinking, bathing, washing, and lawn and plant watering.
Key Features & Benefits
Compatibility & Requirements
Install this system on the main water line after the meter and pressure regulator but before any branch lines. The unit requires 1.5-inch female NPT connections at inlet and outlet ports. Installation should be performed by a qualified plumber familiar with local plumbing codes and water system requirements. Check local building codes for backflow prevention and water treatment system regulations before installation. The system works with municipal and well water supplies. Measure available installation space to confirm the 26-inch height and 7.5-inch diameter will fit in your chosen location with clearance for cartridge replacement. Replace the cartridge every 50,000 gallons or 6 months, whichever comes first. Order replacement cartridges separately as model MHP-42516.
Installation & Care
Mount the system vertically to a wall using the included mounting back plate, bracket, and screws. Connect the inlet port to your main water supply line and the outlet port to your household plumbing using 1.5-inch NPT fittings. Turn off the main water supply before making connections. Use the included housing wrench to install the cartridge inside the unit housing. Turn on water slowly and check all connections for leaks. Purge air from the system by running water through several fixtures for 2 to 3 minutes. Mark the installation date on the cartridge replacement reminder sticker. Replace the cartridge every 6 months or after 50,000 gallons of use. Shut off water supply and relieve system pressure before opening the housing to change cartridges. Use the housing wrench to remove the housing canister, replace the spent cartridge with a new one, and reinstall the housing with a hand-tight seal. Avoid overtightening the housing threads. Check the system periodically for leaks at connections and housing seal.
What's Included
Warranty & Support
The Manor Water Softener System includes a 5-year warranty covering defects in materials and workmanship. A 90-day money-back guarantee allows return of the system for a full refund if you are not satisfied with its performance during the trial period.
Frequently Asked Questions
Q: What is the distance between inlet and outlet ports and what type of fittings do I need?
A: The system measures 7.43 inches wide by 25.25 inches high, and both the inlet and outlet ports have 1.5-inch female NPT threading that requires male NPT fittings for connection.
Q: What is the total gallon capacity and flow rate of the DPMB model?
A: The DPMB model treats up to 50,000 gallons per cartridge (approximately 6 months of use) and provides a flow rate of 15 to 18 gallons per minute through its 1.5-inch ports.
| Product Type: | Water Treatment System |
|---|---|
| Type: | Water Softener Salt-Free |
| Height: | 26" |
| Diameter (Inches): | 7-1/2" |
| Reduction Claim: | Water Hardness Scale |
| Warranty: | 5 Year 90 Day Money Back |
Hi Sam, thanks for writing in. This system measures 7.43" W x 25.25" H and the ports are female threading.
Hi Ted. The Nuvo model DPMB will provide 15-18 gpm of water flow with 1-1/2" ports. The total capacity of the system is about 50,000 gallons or up to 6 months.
