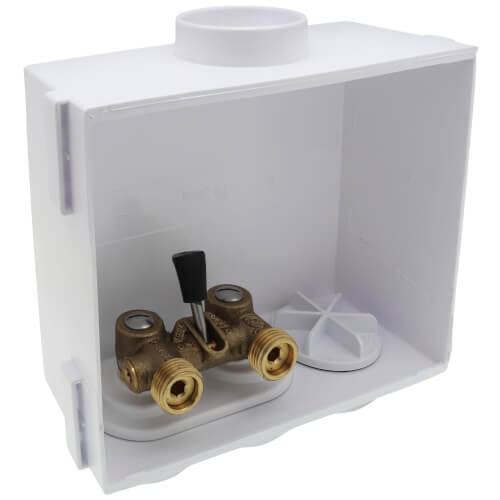

QUADTRO Expansion PEX Washing Machine Outlet Box w/ Single Lever Ball Valve (Standard Pack)

Oatey Quadtro washing machine outlet boxes are made for commercial or residential applications which require supply valves and waste drain recessed into the wall. The proprietary lock and load valves enable left, right, or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years..

Features:

• 2" drain opening fits PVC or ABS Sch. 40 DWV pipe
• Easy to remove 1/4 turn knockout
• Valves available in no hammer or hammer options
• Single lever valve
• Snap-on Faceplate Frame accommodates up to 1" drywall
• Box made of high impact polystyrene
• Top or Bottom Valve Mount
• 4 support brackets included for mounting
• Box Dimensions: 8-3/4"W x 7-1/2"H x 3-5/8"D
• Faceplate Dimensions: 11-3/4"W x 10-1/8"H

Specifications:

• Tailpiece: F1960 PEX (Brass)
• Hammer Arrestor: No
• Brand: Oatey
• Valve Size: 0.75 in.
• Color: White
• Material: High Impact Polystyrene
• Valve Body Material: Brass
• Product Line: Quadtro
