Product Highlights
Description

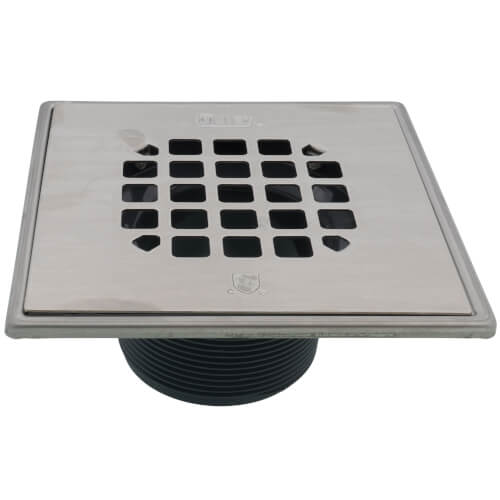

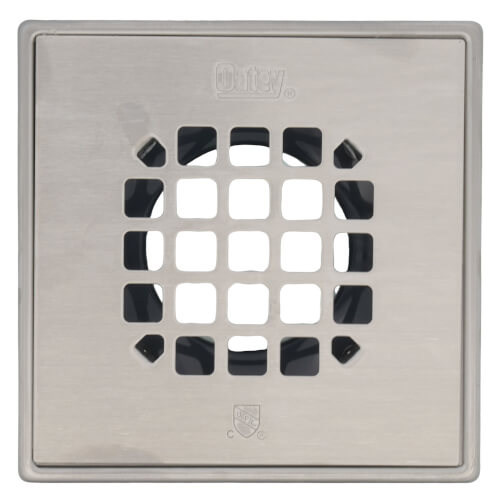

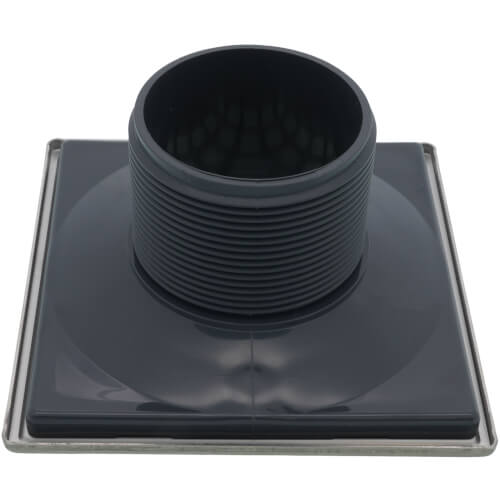

Oatey 130 series shower pan drains shall be used in residential and commercial applications when connecting to a DWV system. Using the countersunk holes, secure the flange base to the subfloor with an approved fastener. Shower pan drain shall have a solvent weld connection over 2" Sch. 40 DWV hub connection which conforms to ASTM D2665 (PVC) or D2661 (ABS). Shower drain base available in both PVC and ABS can be solvent welded over 2" Sch. 40 or solvent welded inside 3" Sch. 40 DWV. Strainer shall meet all necessary load and flow requirements for installations in shower areas. Base accepts 130 series 1/4.Turn Test Plug, which holds 40ft of head pressure. Clamp collar ring fastens by use of hex bolts that thread into brass inserts and has improved weep holes and channels, which can be inverted to achieve an additional 1" in finished height.
Product Features
- Size: 4.54 in.
- Shape: Square
- Cover Design: Snap-In
- Pipe Size: 2 or 3 in.
- Connection Type: Solvent Weld
- Strainer Finish: Brushed Nickel
- Drain Orientation: Shower
Specs
| Type: | Shower Drain |
|---|---|
| Material: | PVC |
| Finish: | Brushed Nickel |
