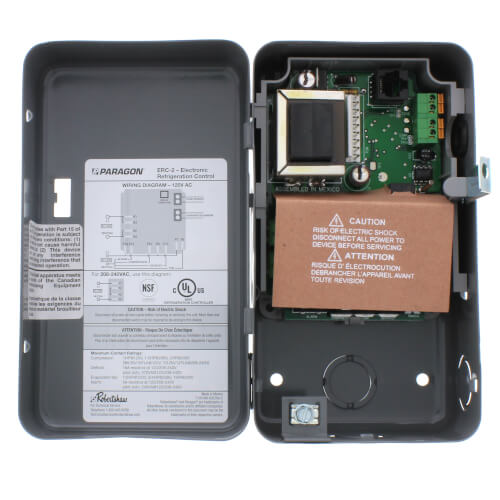

ERC-2 Electronic Refrigeration Control with NEMA 1 Case and Remote Display

The Paragon ERC-2 is a microprocessor-based controller designed to manage all of the temperature and defrost functions in a typical piece of commercial refrigeration equipment. By integrating these functions into one device, the ERC-2 can replace up to five different controls; the case thermostat, defrost timer, defrost termination switch, fan delay switch, and thermometer. The ERC-2 features two NSF approved temperature sensors for the case and the evaporator. Also featured are four powerful relay outputs; one each for the compressor, fan, defrost and alarm. Selectable line voltage input power (120/208/240VAC at 50/60Hz) enable it to handle a wide range of equipment.
