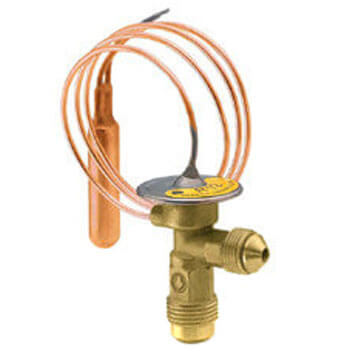

Main product image of 1/4" x 1/2" SAE N-1/2-JW Thermal Expansion Valve (1/2 Ton)

Hover image to zoom

1/4" x 1/2" SAE N-1/2-JW Thermal Expansion Valve (1/2 Ton)

Name: 1/4" x 1/2" SAE N-1/2-JW Thermal Expansion Valve (1/2 Ton)
Brand: Parker Hannifin
SKU: 040293-01
Price: 108.9 USD
Availability: OutOfStock

Brand:

Parker Hannifin

SKU:

040293-01

Rating:

(0)

Q&A:

(0)

1/4" x 1/2" SAE N-1/2-JW Thermal Expansion Valve (1/2 Ton)

Hover image to zoom

040293-01 has been discontinued

Discontinued September 7, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Refrigeration Selection Chart

Brochure

Refrigeration Selection Chart

Brochure

Suggested Alternative:

1/4" x 1/2" SAE C-AA-JW Thermal Expansion Valve (1/6 to 1/4 Tons)

Brand:

Parker Hannifin

SKU:040329-01

(0)

Order by today, receive 6 by Tuesday

VIEW ALTERNATIVE

Product Highlights

–

1/4"

1/2"

SAE Connection

.5

R-401A, R-401B, R-134A, R-12

Description

–

N & NE Series - This small flare brass valve series is ideally suited where space is at a premium. Its stainless steel power element and compact body has always made it the first choice for installation in commercial refrigeration systems. External equalized models are provided with 30" capillary and 1/4" SAE flare nut, eliminating the need to run a separate equalizer line. Medium, low & MOP (X) charges are available as noted below.

Key Features and Benefits:

Compact body
Removable inlet screen
Factory set superheat
Accurate and stable control
Right angle configuration
30" capillary tube
Weight: 5.0 oz. / .14 kg

Specs

–

Application:	Beverage Boxes Small Freezers Low Profile Coolers Small Chillers Beverage Dispensers Ice Machines
Inlet Size:	1/4"
Outlet Size:	1/2"
Connection Type:	SAE
Ton:	.5
Equalizer:	Internal
Refrigerant Type:	R-401A R-401B R-134A R-12
