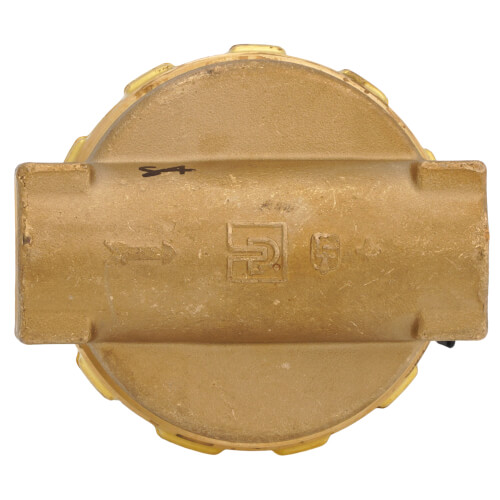

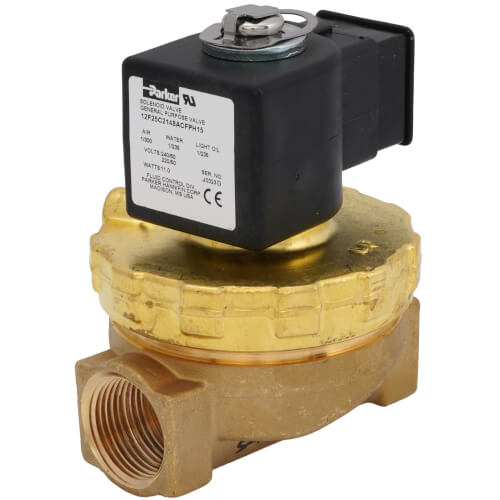

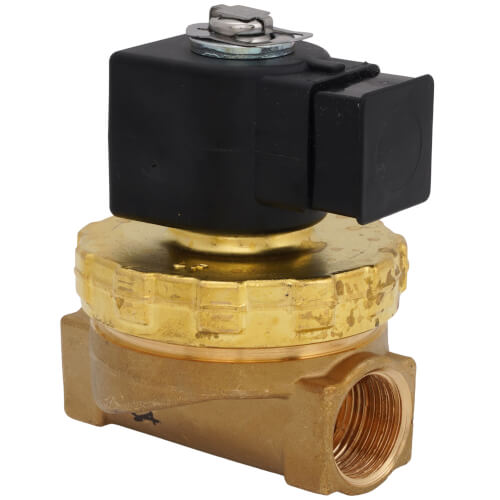

3/4" Gold Ring Series 2-Way Normally Closed Pilot Operated Solenoid Valve (7.4 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$395.33 each
In Stock
Get 3 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
240v, 220v
3/4"
2-Way
FNPT x FNPT Connection
7.4 Cv
Description
–
Please note: All valves sold without coil.
Parker's Gold Ring line of brass body general purpose solenoid valves include the two, three and four-way products for use in a variety of applications. The valves are used in situations where the need exists to electrically control the flow of a fluid or gas.
Parker's Gold Ring line of brass body general purpose solenoid valves include the two, three and four-way products for use in a variety of applications. The valves are used in situations where the need exists to electrically control the flow of a fluid or gas.
- Normally Closed - energize to open pressure port. De-energized, closed.
- Maximum Working Pressure - 300 PSI
- Flow Capacity - 7.4 CV
- Hot Water: 1-300 PSI
- Maximum Fluid Temperature: 180 °F
- Port Size: 3/4"
- Input Voltage:220/50-240/60
- Valve Type: 2-Way
- Function: Normally Closed
- Power (Watts): 11 Watt (AC)
Specs
–
| Size: | 3/4" |
|---|---|
| Connection Type: | FNPT x FNPT |
| Flow Capacity (Cv): | 7.4 |
| Product Type: | Solenoid Valve |
| Max Temp (F): | 180°F |
| Position: | Normally Closed |
| Body Pattern: | 2-Way |
| Max Pressure (PSI): | 300 |
| Voltage: | 240v 220v |
