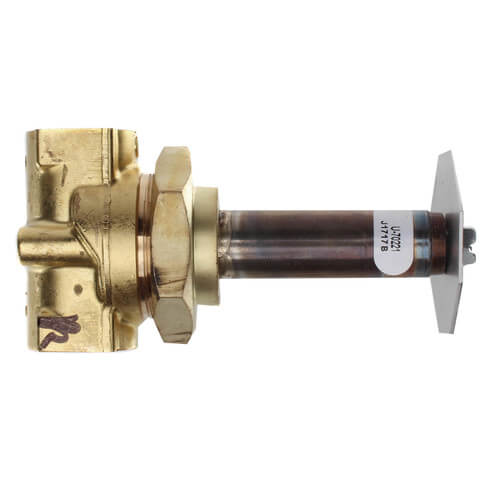

1/2" GP4 Normally Closed General Purpose Solenoid Valve (3.35 Cv)
Hover image to zoom

1/2" GP4 Normally Closed General Purpose Solenoid Valve (3.35 Cv)

SKU:
70561
Rating:
(0)
Q&A:
(0)
1/2" GP4 Normally Closed General Purpose Solenoid Valve (3.35 Cv)
Hover image to zoom
$145.83 each
Backorder
Backorder
Get it Fri, Jun 21 - Mon, Jul 22
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Position icon
Normally Closed
Size icon
1/2"
Body Pattern icon
2-Way
Connection Type icon
FNPT x FNPT Connection
Flow Capacity (Cv) icon
3.35 Cv
Max Pressure (PSI) icon
150 PSI

Description

Type 1 two-way solenoid valves can be used on either low or high pressure. The smaller valves are direct acting while the larger valves are pilot operated. These valves are for general application on non-corrosive fluids such as air, water below 180°F, light oils below 300 SUS, and low vacuum. All seal off bubbletight.
Please note: All valves sold without coil
  • Forged brass body with Buna "N" diaphragm, type 430 stainless steel plunger and fluoroelastomer pilot seat
  • Maximum fluid temperature: 225°F
  • Air, Water, Oil: 1-150 PSI
  • Normally closed
  • Port Size: 1/2"
  • Flow Capacity: 3.35 Cv

Specs

Connection Type:

FNPT x FNPT

Size:

1/2"

Product Type:

Solenoid Valve

Position:

Normally Closed

Flow Capacity (Cv):

3.35

Body Pattern:

2-Way

Max Pressure (PSI):

150

Max Temp (F):

225°F
