Description

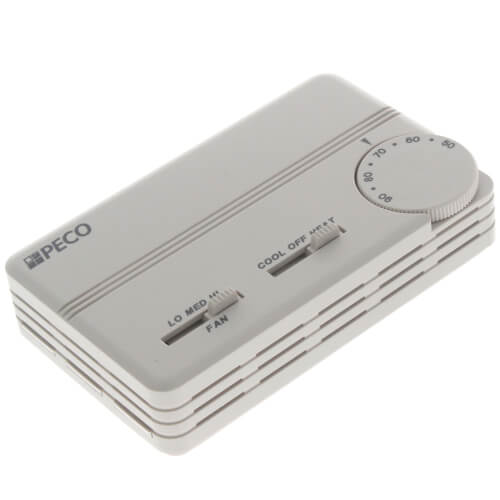

The TA155 manual changeover thermostat is designed for use in HVAC systems including two or four-pipe fan coil applications or other installations requiring manual switching between heating and cooling. Solid state accuracy offers comfort and efficiency while contemporary styling complements room décor.

Advanced self-configuring circuitry allows the T155 electronic thermostat to be applied directly to input voltages from 24 to 277 VAC, 50 or 60Hz. Thermostat outputs are suitable for connection to relays, valves and similar pilot duty loads. The system and fan switches will handle inductive and resistive loads.

Standard models are available as a heating/cooling thermostat only or with integral switches for Heat-Off-Cool and fan speed selection. The standard T155 is user configurable for either unit or remote thermistor sensing.

Fan operation, which is dependent on external connections, can be used for either continuous operation or cycled operation with the use of a load handling relay.

Features:
Solid State Precision and Dependability
  • Fan Coil Units
  • Accepts 24 to 277 VAC
  • Heating/Cooling Applications
  • Heat-Off-Cool System Switch
  • PTAC Units
  • Multi-Speed Fan Switching Available
  • Terminal Block
  • Fan Control
  • Read more
    Specs
    Application:
    Single-Stage (Heat/Cool)
    Max Temp (F):
    90°F
    Min Temp (F):
    50°F
    Hertz:
    50
    60
    Programmability:
    Non-Programmable
    User Interface:
    Mechanical
    Mount:
    Horizontal
    Vertical
    Stages:
    1 Heat/1 Cool
    Options:
    Fan Control
    Power Method:
    Hardwired
    Wiring:
    Terminal Block
    Voltage:
    24v
    277v
    240v
    120v
    208v
    ×
