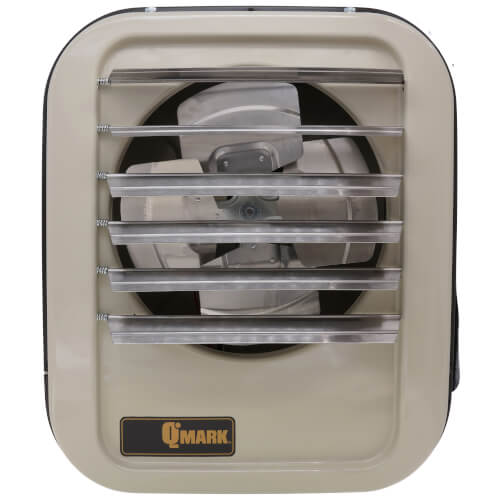

MUH Series Horizontal/Vertical Electric Unit Heater 208/240 VAC, 7.5/10.0 kW, 36/42A
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$980.93 each
In Stock
Get 4 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
650 CFM
208/240V
42 Amps
1600 RPM
1/30 HP
Description
–
MUH Series Horizontal/Vertical Electric Unit Heater 208/240 VAC, 7.5/10.0 kW, 36/42A
Features:
Ideal Spaces:
Features:
- Wide range of optional control kits are field-installable, increasing the unit's adaptability to specification market
- Small- to medium-case construction is 20-gauge steel with larger cabinet 18-gauge steel; completely enclosed fan motor
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Branch circuit fusing (when required)
- 2-speed fan selector switch (25 to 50 kW models) and optional fan-only switch for air movement with no heat
- 1- or 3-phase wiring on 5 kW through 10 kW 208/240V and 15 kW 208V units (field-interchangeable)
- Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- 24V control transformer standard on most models, providing safer and more accurate means of temperature control. 3 kW and 5 kW, 208- 277V, have line voltage controls as standard (24V control available on made-to-order basis)
- Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (manual reset protection available on made-to-order basis)
- No piping flues, valves or traps needed for installation
- Individual stainless steel adjustable louvers to direct air flow
Ideal Spaces:
- Factories
- Warehouses
- Garages
- Stairwells
- Shipping Docks
- Power Stations
- Mechanical Rooms
Specs
–
| Air Flow Capacity (CFM): | 650 |
|---|---|
| Voltage: | 208/240V |
| Type: | Unit Heater |
| Kilowatts (KW): | 10 7.5 |
| Amperage: | 42 |
| Phase: | 1 3 |
| RPM: | 1600 |
| Wire Size: | #6 AWG |
| Horse Power: | 1/30 |
