Plenum Rated Primary Pan Sensor w/ Time Delay
Hover image to zoom

Plenum Rated Primary Pan Sensor w/ Time Delay

Plenum Rated Primary Pan Sensor w/ Time Delay
Hover image to zoom
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon

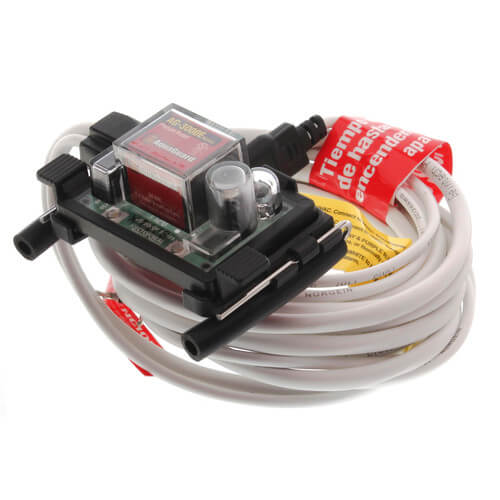

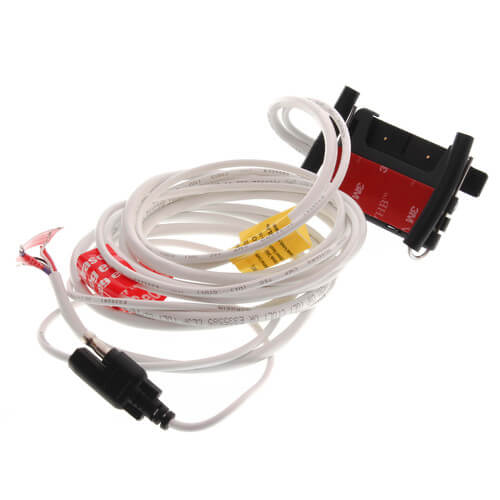

The AquaGuard AG-3175E Primary Pan Sensor with Time Delay provides all the same features and benefits of our AquaGuard AG-3150E with the addition of Plenum Rated Probe and Sensor Wiring. The AquaGuard AG-3175E is a high-amperage, solid state sensor with time delay, which contains no moving parts that could become clogged like competitors? condensate float sensors. The primary pan auxiliary drain probe sensor and the bonus secondary pan sensor?s low profile design make any installation quick and easy for total condensate management - TWO SENSORS FOR THE PRICE OF ONE. In addition, the AquaGuard AG-3175E?s water resistant design and dependable, rugged construction makes it completely submersible and cost effective.

Product Features
  • Patent Pending Smart Sensor Technology with Time Delay
  • Redesigned Probe Sensor for Increased Reliability
  • Bonus Secondary Sensor with Water Detection LED Light ? Two Sensors for the Price of One
  • 6 Feet of Both Plenum Rated Probe & Sensor Wire
  • 5 Amp, 24 Volts AC Solid State Sensor with Water Detection LED Light
  • Switch Can Be Normally Open or Normally Closed
  • Normally Open 4th Wire for Optional External Alarm, Digital Controller or Energy Management Systems
  • Compact Waterproof Design
  • US Patents and Patents Pending
  • UL 508 Approved




Wire Size:


Product Type:


Time Delay:

60 Seconds
