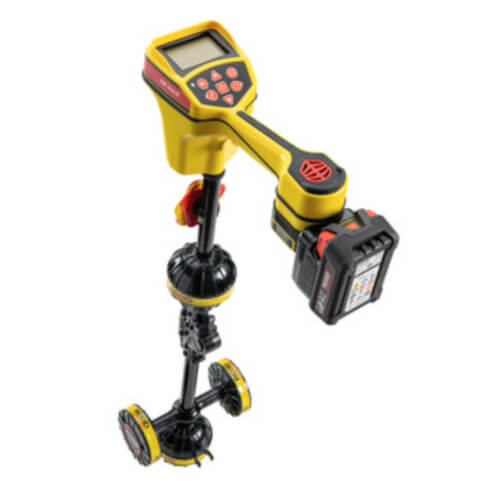

SR-24LE Seektech Line Locator w/ Bluetooth & GPS

The RIDGID SR-24LE is a precision utility locating instrument with GPS and Bluetooth Low Energy technology for easy integration with external data capture devices. The SR-24LE's intuitive mapping display shows the utility's estimated position, direction and depth, while audio cues guide the operator over the utility.
The omnidirectional antenna array captures the complete signal field, making it easy to acquire the signal and trace its path for greater speed and accuracy as the gradient antenna pair provides left/right guidance for centering over the signal. Already equipped with a SeekTech 18V Battery Adapter, this locator is ready to power with a RIDGID 18V Lithium Ion battery (not included) for long-lasting power in the field.

Features

• Bluetooth Compatibility - Bluetooth Low Energy technology streams data to smartphones, tablets or high-precision GPS instruments.
• Integrated Battery Adaptor - Equipped with a SeekTech Battery Adaptor for your RIDGID 18V
• Lithium Ion battery (battery purchased separately).
• Delineation - Intuitive mapping display shows concealed utilities estimated position, direction, and depth.
• Omnidirectional Antennas - Capture the complete signal for greater speed and accuracy.
• Built-In GPS - Track location coordinates for mapping and GIS applications.
• Wireless Streaming - Transmit real-time line location coordinates using RIDGIDtrax App.
• Increased confidence - Audio and visual warnings alert signal field distortion.
• Portability - Foldable mast for easy transport and storage.

Specifications

• Programmable Line & Sonde Frequencies: Any from 10Hz to 35kHz
• Default Active Line Trace Frequencies: 128Hz, 1kHz, 8kHz, 33kHz
• Passive Power Frequencies: 50Hz, 60Hz
• Passive Frequency Ranges: <4kHz, 4kHz - 15kHz, 15kHz - 30kHz
• Programmable Line Trace Frequencies: Up to 35kHz
• Sonde Frequencies: 16Hz, 512Hz, 33kHz
• Wireless Technology: Bluetooth Class 1 Low Energy
• Wireless Range: 1093 yds (1000 m)
• GPS Average Accuracy: Less than 8.2 ft (2.5 m)
• Weight (without batteries): 3.3 lb (1.5 kg)
• Length: 11.2" (28.4 cm)
• Width: 4.3" (10.9 cm)
• Height: 31" (79 cm)
• Battery Type: 18V Advanced Lithiu, Battery
• Operating Temperature: -4F to 122F (-20C to 50C)
• Storage Temperature: -4F to 140F (-20C to 60C)
