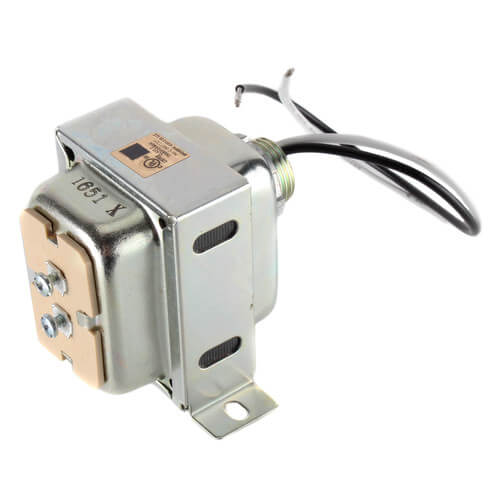

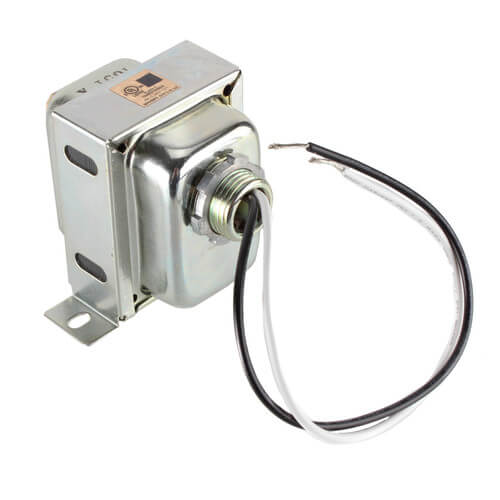

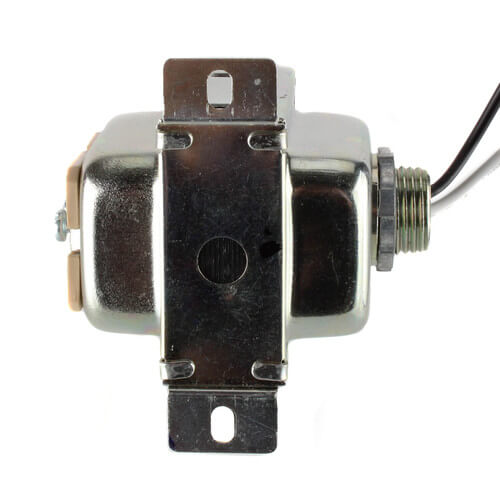

Foot Mounted 120 Vac Transformer with 9 in. Lead Wires, AT72D1089
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$53.61 each
In Stock
Get 9 Mon, Jun 15
Order by today, receive Monday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Foot
-20°F - 105°F
3-7/32"
1-1/16" into plate x 2" above plate Depth
Description
–
24V control circuit step-down transformer designed to power any 24V control system, including thermostats, gas valves and relays.
Features
Specifications
Features
- Override protection provided.
- Color-coded leadwires for primary connections.
- Energy limiting, meets NEMA Standard DC20-1992.
- Transformer is marked NEMA Type D.
- Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
- Mount within proper enclosure.
Specifications
- Description: Foot mounted 120 Vac Transformer with 9 in. leadwires
- Electrical Ratings: 120 Vac
- Electrical Ratings -Secondary Voltage: 26.5 V.O.C.
- Frequency: 60 Hz
- Frequency: 50 Hz
- Mounting: Foot-mounted
- NEMA Rating: NEMA type D
- Electrical Connections (Primary)(in): 1/2 in. male conduit spud with 9 in. leadwires
- Electrical Connections (Secondary)(in.): (2) screw terminals
- Electrical Ratings -Output: 24 Vac at 40 VA
- Dimensions: 3-7/32 in. high x 2-7/32 in. wide x 3-1/16 in. deep
- Temperature Ratings: -20 F to +105 F
Specs
–
| Application: | 24v Controls |
|---|---|
| Mount: | Foot |
| Voltage (Primary): | 120V |
| Voltage (Secondary): | 26.5 V.O.C. |
| Hertz: | 60 50 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 40 |
| NEMA Rating: | Type D |
| Height: | 3-7/32" |
| Width: | 2-7/32" |
| Depth: | 1-1/16" into plate x 2" above plate |
| Wiring: | 9" leadwires w/ 1/2" male conduit spud Screw Terminals |
| Electrical Output: | 24 Vac at 40 VA |
