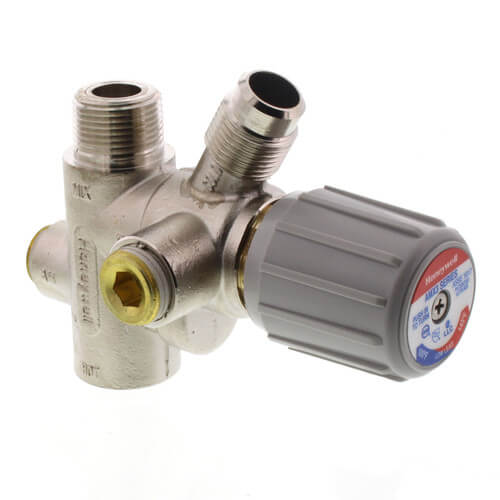

3/4" Replacement Mixing Valve for AMX300T and AMX302T (Valve Only)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$184.61 each
In Stock
Get 1 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
This item replaces: AMX300
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MPT x FPT Connection
3/4"
2.1 Cv
212°F, 80°F Max Temp
33°F, 100°F Min Temp
100°F to 212°F (hot water inlet), 33°F to 80°F (cold water inlet)
Description
–
**Lead Free**
This is the VALVE ONLY. This is a replacement valve for DirectConnect water heater kits AMX300T and AMX302T
Honeywell AMX300 series DirectConnect™ kits reduce installation time while providing Honeywell's industry-leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.
Features
This is the VALVE ONLY. This is a replacement valve for DirectConnect water heater kits AMX300T and AMX302T
Honeywell AMX300 series DirectConnect™ kits reduce installation time while providing Honeywell's industry-leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.
Features
- Temperature is adjustable using push-twist-release locking hand wheel design and if cold water supply is interrupted, flow reduction occurs in seconds
- Kit includes mixing valve, cold water tee fitting and flexible stainless steel connector
- Recirculation portion option offers fast delivery of heated water to the furthest fixtures, increasing user comfort with more available hot water
- The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications
- Fits most water heaters up to 1", with all necessary adapters included
- Brass/stainless construction with Teflon coated wear surfaces for extended surface
Specs
–
| Application: | Point of Source |
|---|---|
| Connection Type: | MPT x FPT |
| Inlet Type: | FNPT |
| Connection Method: | Threaded |
| Outlet Type: | MNPT |
| Size: | 3/4" |
| Temperature Range (F): | 100°F to 212°F (hot water inlet) 33°F to 80°F (cold water inlet) |
| Min Temp (F): | 33°F 100°F |
| Max Temp (F): | 212°F 80°F |
| Mixed Water Supply Temperature Range (F): | 100 F to 145 F |
| Minimum Flow Rate (GPM): | 0.25 gpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT |
| Max Pressure (PSI): | 150 |
| Flow Capacity (Cv): | 2.1 |
| Standards Met: | ASSE 1017 |
| Valve Action: | Mixing |
| Material: | Brass |
| Used With: | AMX300T Valve Kit AMX302T Valve Kit |
| Lead Free: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
No problem
My husband put it on for my daughter business with no problem. And also the piece came in just in time
Ready and running
Detroit mich
4 years ago
Verified Buyer
Was this review helpful to you?
Exactly what I needed
The old Honeywell mixing valve was seizing up, causing the water to be luke warm. Replaced with this and everything works fine. This is a replacement kit only, not the full install package.
TE
Bedford, NH
5 years ago
Verified Buyer
Was this review helpful to you?
Excellent replacement part
The part arrived in a timely manner and was an exact fit replacement part.
Michael
AZ
7 years ago
Verified Buyer
Was this review helpful to you?
Excellent Product
Easy to install and very effective at preventing scalding.
Easy to adjust.
NHpro
Nashua, NH
10 years ago
Was this review helpful to you?
Works great!
I had an issue with smelly water in my home system I contacted the dealership where I purchased my water heater, which I bought less than a month ago. The anode needed replacing already and I was told to increase the thermostat to kill all the bacteria causing the smelly water. I found the Honeywell AMX300TLF unit online and purchased it. After a very simple installation (less than 1 hour and few tools) my problem went away. I can regulate the temperature going into my home water supply with a twist of the dial. Problem solved. But remember to turn the power to the water heater back on after the installation (which I failed to do and wondering why I had no hot water). I called the Honeywell tech support to trouble shoot the valve and they were very courteous and helpful. That's when I started backtracking and found my problem. Now everything is working perfectly with no smelly water. Thank you Honeywell.
Wayner
Bethel Island, California
13 years ago
Verified Buyer
Was this review helpful to you?
