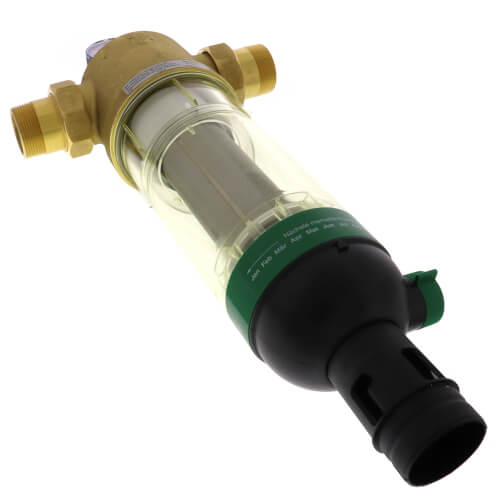

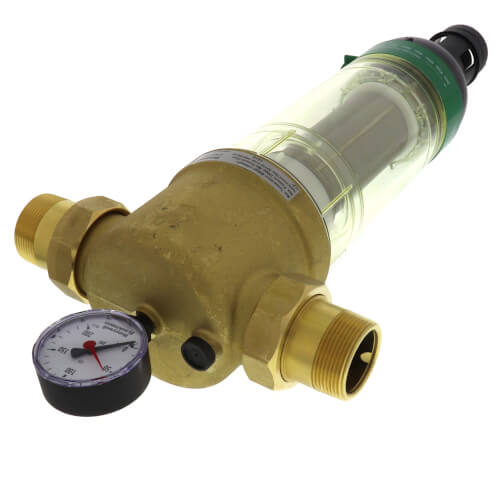

- Description - 1-1/2 inch Water filter
- Pipe Size (inch)- 1-1/2 in.
- Pipe Size (DN)- DN15
- Connection Type - NPT External Threaded and Sweat
- Sump - Clear Plastic
- Capacity (Cv) - 26 Cv
- Capacity (Kv) - 22.3 Kv
- Pressure Ratings (psi) - 230 psi maximum
- Dimensions (in.) - 20 5/16 in. high x 10 1/2 in. wide x 4 3/4 in. deep
- Dimensions (mm) - 532 mm high x 246 mm wide x 119 mm deep
- Weight (lb) - 8.8 lb
- Weight (g) - 4 kg
- Screen Size - 100 micron screen
- Temperature Rating (F) - 104 F Maximum
- Materials (Body) - Brass
- Temperature Rating (C) - 40 C Maximum
- Includes - gauge and service wrench
- Whole House Protection
- Ideally suited for sediment removal applications that would quickly plug and restrict the flow of normal filters.
- Used as a prefilter, the F76 protects elements of the water system, including specialized treatment devices or other common fixtures and appliances.
- The flow filtering capacity and ease of cleaning make the F76S ideal for the most demanding applications.
- Built-in secondary filter provides an uninterrupted supply of filtered water during backwashing.
