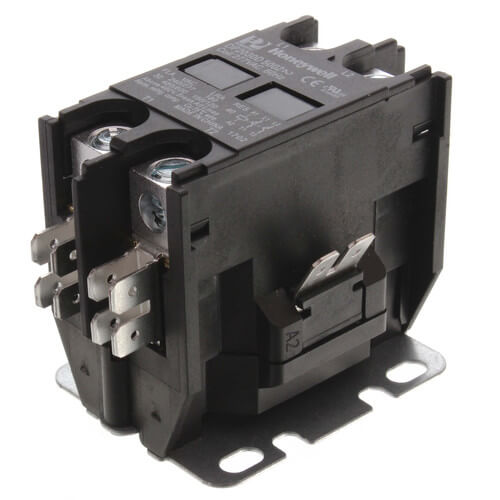

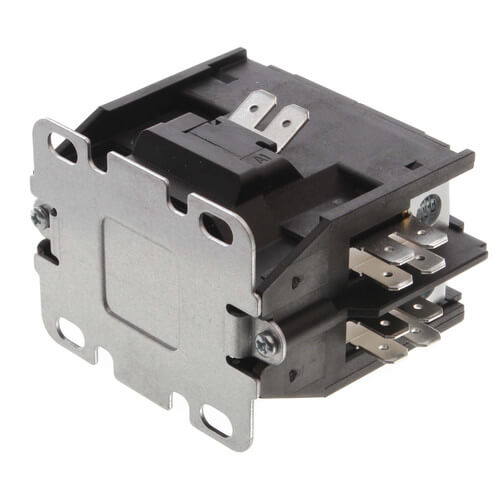

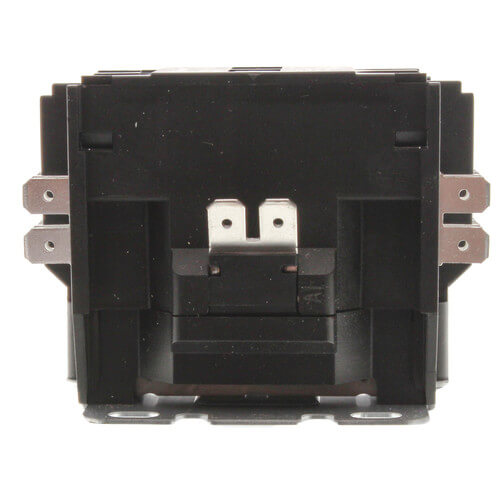

2 Pole, 30 Amp, 277 VAC PowerPro Definite Purpose Contactor, DP2030D5002
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DP2030D5002 has been discontinued
Discontinued July 3, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: 8910DPA32V04, 8910DP32V04, DP2030D5001
Direct Replacement:
277 VAC 2 Pole PowerPro Deluxe Definite Purpose Contactor (30 A), DPL2030D5002
Product Highlights
–
30 Amps
-4°F to 149°F
277v
Description
–
Overview:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.
Features:
- Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI requirement.
- Silver cadmium oxide contacts provide long life under demanding duty cycles.
- Low profile design allows for more wiring room.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Coil Ratings Voltage: 277 Vac
- Poles: 2
- Electrical Connections (main): lug connectors
- Contact Connections (coil): double 1/4 in. quick-connects
- Dimensions (in.): 2.2" high x 2.5" wide x 3.31" deep
Specs
–
| Amperage: | 30 |
|---|---|
| Coil Ratings: | 277 VAC |
| Poles: | 2 |
| Switch: | DPST |
| Temperature Range (F): | -4°F to 149°F |
| Application: | PowerPro Definite Purpose Contactor |
| Voltage: | 277v |
