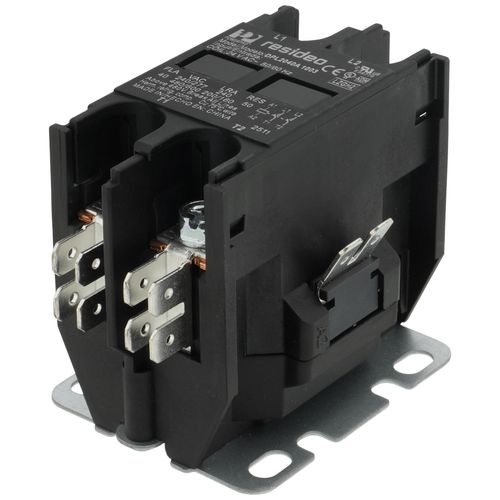

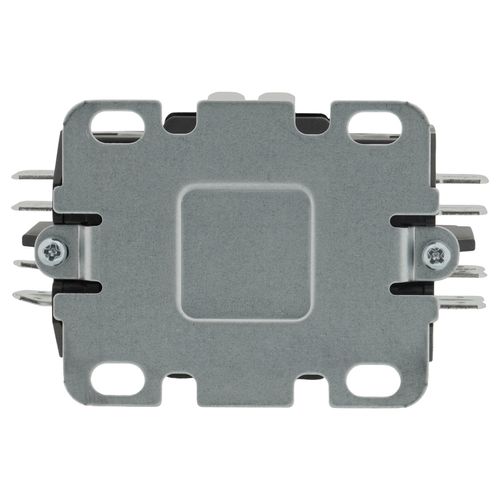

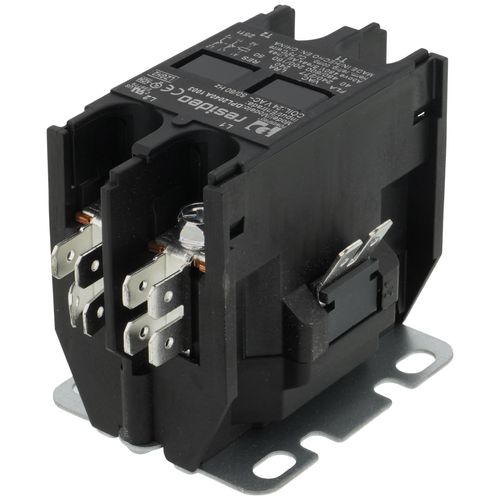

24C Vac 2 pole Definite Purpose Contactor (40 A), DPL2040A1003
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$41.87 each
In Stock
Order by 6PM, receive Monday
This item replaces: 45GG20AJX591, DP2040A1003
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
40 Amps
-13°F to 158°F
Description
–
Overview:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors and are compliant with A2L refrigerants.
Features:
- Application: Economy Definite Purpose Contactor
- Product Features: Compliant with A2L refrigerants. Silver cadmium oxide contacts provide long life under demanding duty cycles. Low profile design allows for more wiring room. Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
- Coil Rating Voltage: 24 V AC
- Coil Connection Size: 1/4 in
- Coil Connection Type: Quick Connect
- Number of Poles: 2 Poles
- Operating Frequency: 50 Hz, 60 Hz
- Electrical Connection Type: Slotted & hex head screw with quad .250'' quick connect terminals
- Switch Action: DPST
- Ambient Operating Temperature (Min): -13 F, -25 C
- Ambient Operating Temperature (Max): 158 F, 70 C
- Product Height: 2.3 in, 58 mm
- Product Width: 3.2 in, 81 mm
Specs
–
| Voltage: | 24V |
|---|---|
| Amperage: | 40 |
| Temperature Range (F): | -13°F to 158°F |
| Poles: | 2 |
| Application: | Economy Definite Purpose Contactor |
