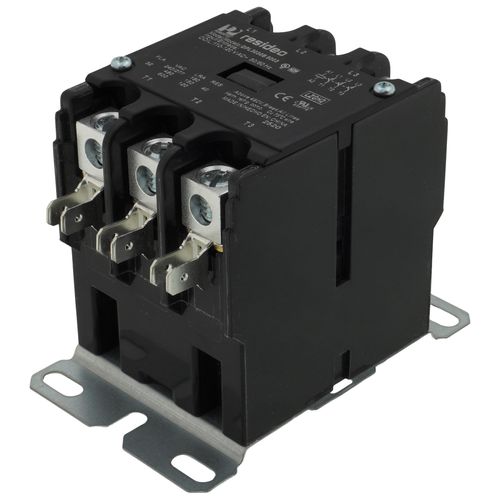

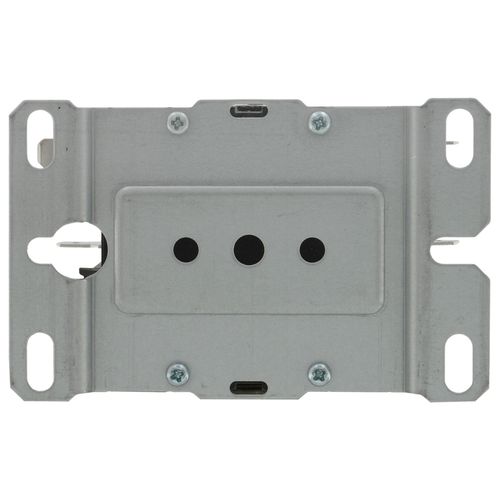

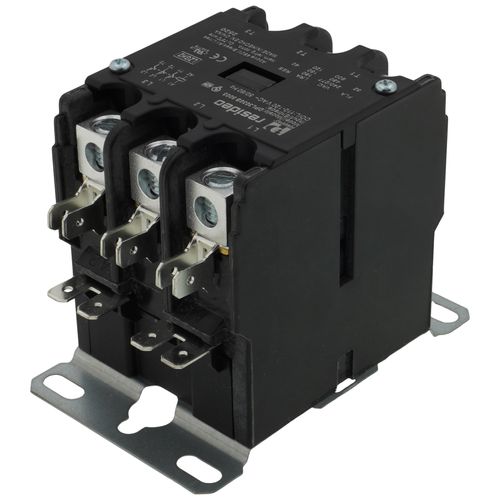

3 Pole, 30 Amp, 120 VAC PowerPro Definite Purpose Contactor, DPL3030B5003

Overview:

These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors and are compliant with A2L refrigerants.

Features:

• Application: PowerPro Definite Purpose Contactor
• Product Features: Compliant with A2L refrigerants. Meets the most demanding ARI requirement, ARI-780 Standard. Class H high-temperature insulated coils are standard on 3-pole contactors. Shrouded coils on 3-pole (25A to 60A) models protect the coil from harsh environmental factors. Multiple mounting holes and slots allow convenient, interchangeable mounting with most competitive devices. Full array of replacement coils, contact sets, and accessories available.
• Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
• Coil Rating Voltage: 110-120 V AC
• Coil Connection Size: 1/4 in
• Coil Connection Type: Quick Connect
• Number of Poles: 3 Poles
• Operating Frequency: 50 Hz, 60 Hz
• Electrical Connection Type: Box lug with dual .250'' quick connect terminals
• Switch Action: 3PST
• Ambient Operating Temperature (Min): -13 F, -25 C
• Ambient Operating Temperature (Max): 158 F, 70 C
• Product Height: 3.1 in, 79 mm
• Product Width: 3.62 in, 92 mm
