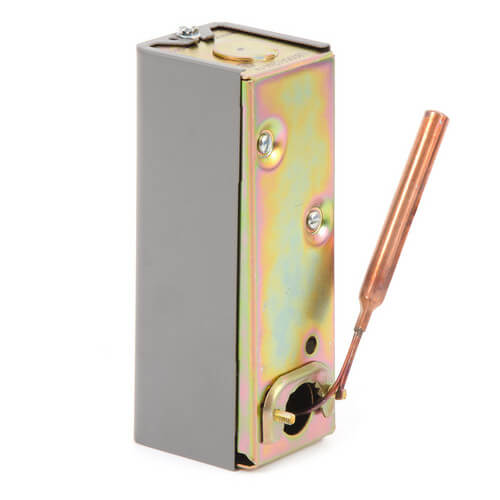

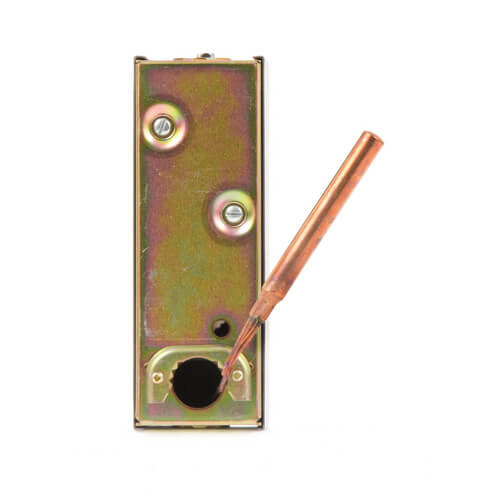

Circulator Aquastat, 100-240-Degree(F) range, 5-Degree(F) Differential, L4006B1007
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac
Fixed
SPST, Contacts Make on Temp Rise
Vertical, Horizontal
100°F to 240°F
5-5/8"
Description
–
Description:
Circulator Aquastat Controller with 100F to 240F operating temperature, 5F fixed Differential
Includes:
1 1/2 in. (38 mm) insulation
Application:
Circulator
Insulation Depth (in.): 1 1/2 in.
Insulation Depth (mm): 38 mm
Bulb Size (in.): 3/8 in. x 2 7/8 in. copper
Bulb Size (mm): 10 mm x 73 mm copper
Spud Size (in.): 1/2 in.
Spud Size (mm): 13 mm
Switching Action SPST, contacts make on temperature rise.
Operating Temperature Range (F): 100F to 240F
Operating Temperature Range (C): 38C to 116C
Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL): 8A @ 120 Vac. 5.1A @ 240 Vac
Electrical Ratings (ALR): 48A @ 120 Vac. 30.6A @ 240 Vac
Differential Temperature (F): 5F Fixed
Differential Temperature (C): 3C fixed
Maximum Ambient Temperature (F): 150F
Maximum Ambient Temperature (C): 66C
Case Dimensions (in.): 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm): 143 mm high x 51 mm wide x 54 mm deep
Mounting: Horizontal or Vertical Mounting
Approvals, Underwriters Laboratories Inc: UL Component
Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association: Certified: File No. LR95329-1
Approvals, American Gas Association IAS: AGA Certified
Circulator Aquastat Controller with 100F to 240F operating temperature, 5F fixed Differential
Includes:
1 1/2 in. (38 mm) insulation
Application:
Circulator
Insulation Depth (in.): 1 1/2 in.
Insulation Depth (mm): 38 mm
Bulb Size (in.): 3/8 in. x 2 7/8 in. copper
Bulb Size (mm): 10 mm x 73 mm copper
Spud Size (in.): 1/2 in.
Spud Size (mm): 13 mm
Switching Action SPST, contacts make on temperature rise.
Operating Temperature Range (F): 100F to 240F
Operating Temperature Range (C): 38C to 116C
Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL): 8A @ 120 Vac. 5.1A @ 240 Vac
Electrical Ratings (ALR): 48A @ 120 Vac. 30.6A @ 240 Vac
Differential Temperature (F): 5F Fixed
Differential Temperature (C): 3C fixed
Maximum Ambient Temperature (F): 150F
Maximum Ambient Temperature (C): 66C
Case Dimensions (in.): 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm): 143 mm high x 51 mm wide x 54 mm deep
Mounting: Horizontal or Vertical Mounting
Approvals, Underwriters Laboratories Inc: UL Component
Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association: Certified: File No. LR95329-1
Approvals, American Gas Association IAS: AGA Certified
Specs
–
| Application: | Circulator Control |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 1-1/2" |
| Switch Action: | SPST Contacts Make on Temp Rise |
| Well Spud Size: | 1/2" NPT |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc 8A @ 120 Vac 5.1A @ 240 Vac |
| Electrical Ratings (ALR): | 30.6A @ 240 Vac 48A @ 120 Vac |
| Differential: | Fixed |
| Max Temp Differential: | 5°F |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | Yes |
| Mount: | Vertical Horizontal |
| Thread Type: | Male |
