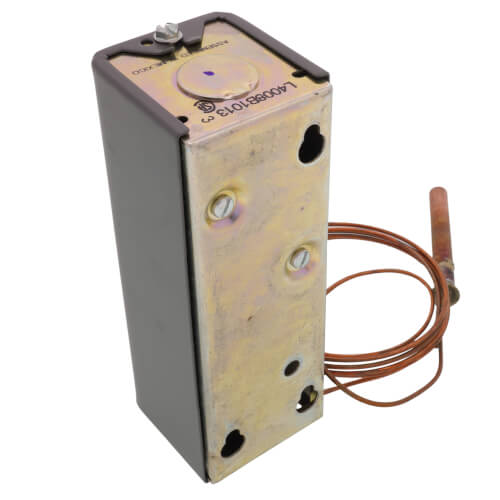

Circulator Remote Bulb Aquastat, 100-240-Degree (F), 5-30-Degree (F) Adj Differential, L4008B1013
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$218.66 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac, 8A @ 120 Vac
Adjustable, 5° to 30°F
Contacts Make on Temp Rise, SPST
Vertical, Horizontal
100°F to 240°F
5-5/8"
Description
–
For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.
Features
Product Specifications
Description : Circulator Aquastat Controller with 100 F to 240 F operating temperature, 5 F fixed Differential and 5 1/2 ft. capillary
Application : Circulator
Bulb Size (in.) : 3/8 in. x 2 7/8 in. copper
Bulb Size (mm) : 10 mm x 73 mm copper
Capillary Length (in.) : 66 in.
Switching Action : SPST, contacts make on temperature rise.
Operating Temperature Range (F) : 100 F to 240 F
Operating Temperature Range (C) : 38 C to 116 C
Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL) : 8A @ 120 Vac
Electrical Ratings (AFL) : 5.1A @ 240 Vac
Electrical Ratings (ALR) : 48A @ 120 Vac
Electrical Ratings (ALR) : 30.6A @ 240 Vac
Differential Temperature (F) : 5 F to 30 F adj.
Differential Temperature (C) : 3 C to 17 C adj.
Maximum Ambient Temperature (F) : 150 F
Maximum Ambient Temperature (C) : 66 C
Case Dimensions (in.) : 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep
Mounting : Horizontal or Vertical
Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association : Certified: File No. LR95329-1
Includes : 5 1/2 ft (1.7 m) capillary.
Features
- Remote temperature sensing element detects and responds rapidly to temperature changes.
- Totally enclosed Micro Switch+ snap-acting switch.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
- Case mounts to a vertical surface.
Product Specifications
Description : Circulator Aquastat Controller with 100 F to 240 F operating temperature, 5 F fixed Differential and 5 1/2 ft. capillary
Application : Circulator
Bulb Size (in.) : 3/8 in. x 2 7/8 in. copper
Bulb Size (mm) : 10 mm x 73 mm copper
Capillary Length (in.) : 66 in.
Switching Action : SPST, contacts make on temperature rise.
Operating Temperature Range (F) : 100 F to 240 F
Operating Temperature Range (C) : 38 C to 116 C
Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL) : 8A @ 120 Vac
Electrical Ratings (AFL) : 5.1A @ 240 Vac
Electrical Ratings (ALR) : 48A @ 120 Vac
Electrical Ratings (ALR) : 30.6A @ 240 Vac
Differential Temperature (F) : 5 F to 30 F adj.
Differential Temperature (C) : 3 C to 17 C adj.
Maximum Ambient Temperature (F) : 150 F
Maximum Ambient Temperature (C) : 66 C
Case Dimensions (in.) : 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep
Mounting : Horizontal or Vertical
Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association : Certified: File No. LR95329-1
Includes : 5 1/2 ft (1.7 m) capillary.
Specs
–
| Application: | Circulator Control |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 66" |
| Switch Action: | Contacts Make on Temp Rise SPST |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc 5.1A @ 240 Vac 8A @ 120 Vac |
| Electrical Ratings (ALR): | 30.6A @ 240 Vac 48A @ 120 Vac |
| Max Temp Differential: | 30°F |
| Differential: | Adjustable 5° to 30°F |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | No |
| Mount: | Vertical Horizontal |
| Max Temp (F): | 240°F |
| Min Temp (F): | 100°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.67 out of 6 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
Works great
I installed it on my hydronic heater and it works great
Franky
Central, Wisconsin
4 years ago
Verified Buyer
Was this review helpful to you?
Does the job
I have a cold start boiler and the "Circulator with Remote Bulb Aquastat" is insuring that the boiler must be up to 140 degrees before circulating water to my indirect hot water tank or any heating zones. Easy hookup, recommend that a good heat conducting paste be used on bulb.
VT ingenuity
ST Albans VY
8 years ago
Verified Buyer
Was this review helpful to you?
Perfect fit.
Item was in stock.
Delivered way before due date.
Excellent price.
Boilerman
El Paso, TX
12 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Aquastat and service were great.
I had an old Trane forced hot water, floor mount heater where the controller was broken.
The original manufacture's controller was very expensive, so I modified the unit to incorporate the Honeywell Aquastat to manage the fan in the system when the hot water was delivered to the unit. All works great at a fraction of the price of fixing the original unit with OEM parts.
Old Yankee
North Conway, NH
15 years ago
Verified Buyer
Was this review helpful to you?
Just what I needed at the right price
Just what I needed and is working great.
Harryo315
Lowville, NY
16 years ago
Verified Buyer
Was this review helpful to you?
Honeywelll Aquastat
Does what I need, but setting the differential to minimum gives about 12 deg. F reset as opposed to the 5 degrees advertised.
Merchant response
16 years ago
This is adjustable 5°F-30°F degrees. Make sure to insulate your piping where the bulb is inserted.
Bob the plumber
Lincoln City, OR
16 years ago
Verified Buyer
Was this review helpful to you?
